HY-1341JF Energy saving cylinder bed single needle filter bags compound feed industrial sewing-machine

Product Description

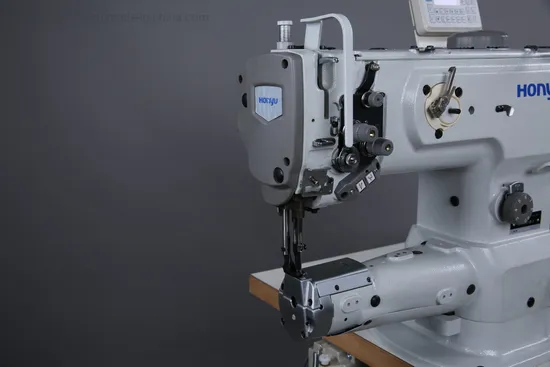

Walking foot leather industrial sewing machine, cylinder bed sewing machine
HY-1341JF Direct drive, single needle cylinder bed compound feed sewing machine(Energy saving)

Model No.	HY-1341JF
Feeding system	Alternating presser foot, feed dog and needle feeding
Max sewing speed	2000 s.p.m
Shuttle diameter	Ф26mm
Diameter of cylinder	80mm
Applied needle	DP×17 #18-#23
Thread size	Maximum thread 9 strands nylon
Max stitch length	9mm
Max alternating presser foot	6.5mm (Manually adjusted by knob)
Max presser foot lifting height	16mm
Presser foot lifting function	Presser foot lifting by air
Auto oil system	√
Operation space	255×103mm

Product Description:
1. Internal direct drive servo motor and pneumatic controller components, it is convenient to install and maintain.
2. Extra large operation space and slim post bed facilitate the handing of three dimension material and high-quality decorative topstitch seams.
3. It's equipped with auto back tacking, pneumatic presser foot lifting, integrated LED light, free handle bobbin winder, up and down needle positioning, pneumatic halving outer foot, balance and compensate inner foot and other practical functions, make the daily sewing more efficient.
4. It can adjust instantaneously internal and external presser foot alternating amount by shortcut button.
5. Standard 8mm needle gauge set, it can optional tape device parts .
Typical Field of Application:
Sewing of bag, filter bag, football and any small material.
