Automatic Coil Slitting Machine for Pipe Production Line

Product Description

Automatic Coil Slitting Machine for Pipe Production Line

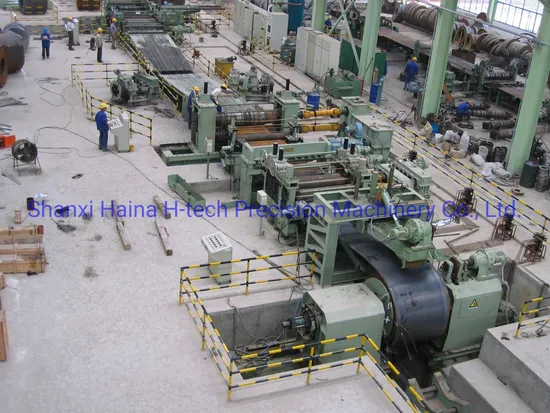

Automatic Coil Slitting Machine Line for ERW and SSAW Pipe is used to open the thick coil, level the steel, cut to pieces with circle shear, recoiling the steel, and pack the coils. According to the feature of heavy slitting line, our company adopts many patent technologies. For example, hydraulic steel arrangement device can put the steel in the right position to let the steel smoothly enter into the tensioner and separating slice. It decreases the labor intervention and improves the efficiency. The steel ends bending device can guarantee the tight clamp by jaw to improve the reliability of jaw. Hydraulic independent jaw can fix the steel.
Model:

No.	Model	Thickness (mm)	Width (mm)	Speed (m/min)	Capacity (kw)	Area (M2)
1	HNZJ-10	4 - 10	1000 - 1550	20 - 40	480	12×40
2	HNZJ-13	4 - 13	1000 - 1550	20 - 40	550	12×40
3	HNZJ-14	5 - 14	1000 - 1700	15 - 30	600	16×50
4	HNZJ-16	6 - 16	1200 - 2150	12 - 25	700	16×50
5	HNZJ-20	8 - 20	1200 - 2150	10 - 20	900	16×50
6	HNZJ-25	10 - 25	1200 - 2150	10 - 20	1200	16×50

Process:
Coil Loading - Uncoiling - Leveling - Ends Cutting - Circle Shear - Scraps Recoiling - Accumulator - Coil Ends Bending - Separating - Tensioner - Recoiler - Coil Unloading
Packing & Shipping
1. We use steel wire and wooden frame to fix the pipe mill.
2. In addition, used shockproof film to protect the main motors.
3. We use containers for shipping.
4. Generally speaking, we start at Tianjin sea port, but we also can start at other port according to customers need.
Our Factory
Our Customer
Integrated Services
1. Provide customers with a reasonable investment plan, filter the appropriate models recommended to customers.
2. Free equipment drawings, customer plant equipment planning drawings.
3. Provide the base map required for installation free of charge.
4. Provide equipment installation and commissioning until the buyer operates normally.
5. Provide professional technical training, as soon as possible to allow the buyer's operator to master the operation and use of the equipment.
6. Provide and coordinate auxiliary equipment, accessories, and consumables.
7. The warranty period is one year, except man-damage. If you have any question in operation in operating the machines, you can call us or send emails, we will solve the problem for you asap.

---
