CNC Wood Turning Lathe for Various Cylindrical Work Piece

US$8,900.00-9,900.00 1 Piece (MOQ)

Basic Info.

Model NO.

CNC1530K-CH

Voltage

380V

Tool Holder

Single-tool Holder CNC Lathe

Automatic Grade

Automatic

Precision

High Precision

Setting Mode

Table

Controlling Mode

CNC

Power Source

Electric

Processing Accessory

Centre CNC Lathe

Certification

CE, ISO

After-sales Service

Free Service on Internet

Working Length

1500mm

Working Diameter

300mm

Working Speed

4000mm/Min

Main Motor Power

5 Kw

Total Weight

1600kg

Overall Size

2800X1500X1650mm

Space Needed

2900X1700mm

Payment Item

30% in Advance, 70% Before Shipment

Guarantee Time

One Year

Transport Package

PE Film

Specification

2800x1500x1650mm

Trademark

CHANCSMAC

Origin

China

Production Capacity

10 Sets/ Month

Product Description

CNC Wood Lathe1.Introduction:
CNC Wood Turning Lathe can do various cylindrical work piece, bowl sharp, tubular sharp and vehicle wood crafts, such as various staircase column, Roman column, general column, tables or chairs legs, washstand, wooden vase, wooden table, baseball bat, car wooden furniture, children' s bed column, etc.
2.Parameter:

Model	CNC1530K-CH
Power supply	AC 380 V, 50HZ, 3 phase four wire
Machine Body	Machine body is casting, powerful and stable
Working Type	Single spindle with double tools
Function	Rotary engraving, Turning, Slotting, Helix, hollow, and line engraving
Working Length	1500mm
Working Diameter	300mm
Working Speed	4000mm/min (5cm*90cm Stair Railing, 1.2Minute/Piece)
Main Motor Power	5 KW
Converter	5.5KW frequency converter for Variable frequency spindle
Cutting Tool	Three Tools Included
Control Form	CNC Computer/ DSP Controller
Support Software	Type3/Artcam/Ucancam/Caxa/Mastercam/UG/Wentai/JD
Linear Guide	Taiwan Brand - CSK High grinding linear square rail
Drive train	Taiwan TBI High precision ball anti-backlash screw
Spindle gear	Japan brand NSK
Total Weight	1600Kg
Overall Size	2800x1500x1650mm
Space needed	2900x1700mm
Packing	Plywood box
Payment Item	30% in advance, 70% before shipment
Guarantee Time	One Year

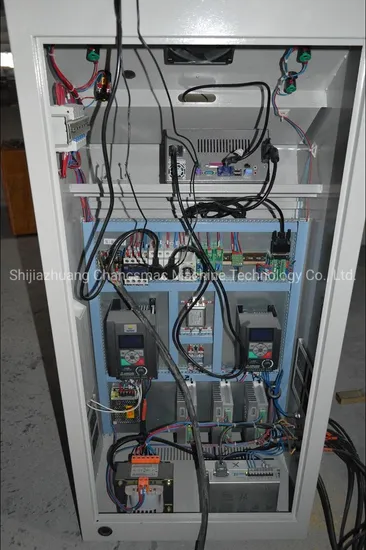

3.Detailed Images:
4.FAQ:
List some questions customers care about, if you have more quotations, please feel free to contact with us
1. Q:What's the MOQ?
R: One set will be ok.
2. Q: Provide customized machine Yes or NO?
R: Yes. We have professional designers and engineers to supply customized machines.
3. Q: What is payment terms?
R: 30%T/T in advance, the balance paid before shipment after inspection.
4. Q: What is the warranty time?
R: One year.
