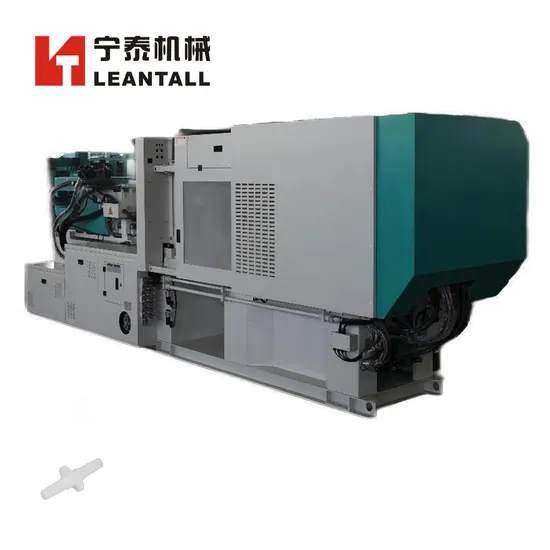

580 Ton Cutlery Injection Molding Machine Electric Custom Inject Plastic Mould Maker

Product Description

Product Parameters

Part	Name	Unit	NT580
Injection Unit	SCREW DIAMETER	mm	75	80	85	90
	SCREW L/D RATIO	L/D	22.7	21.3	20	19
	INJECTION STROKE	mm	390	390	390	390
	NJECTION SPEED	Mm/sec	88	88	88	88
	SHOT VOLUME(THEORETICAL)	CM3	1723	1960	2213	2481
	INJECTION WEIGHT(PS)	g	1568	1783	2013	2257
	INJECTION PRESSURE	Mpa	186	164	145	129
	INJECTION RATE	cm³/sec	388	442	499	560
	SCREW SPEED	rpm	136
Clamping Unit	CLAMP FORCE	Kn	5800
	OPEN STROKE	mm	850
	SPACE BETWEEN TIE BARS	mm×mm	860X810
	MAX.MOULD HEIGHT	mm	830
	MIN.MOULD HEIGHT	mm	330
	EJECTOR STROKE	mm	226
	EJECTOR FORCE	Kn	150
	EJECTOR NUMBER	N	13
Others	MAX.PUMP PRESSURE	Mpa	16
	SEVRO DRIVE POWER	Kw	55
	HEATING POWER	Kw	33.5
	MACHINE DIMENSION(L*W*H)	m×m×m	8.6*2.3*2.6
	MACHINE WEIGHT(ESTIMATE)	T	21

Product Description
Packaging & Shipping
Company Profile
Our Advantages
Q: Are you manufacturer or trading company? A: We are manufacturer with decades experiences,located in Zhejiang province. Q: What is the product range? A: Focus on the manufacture and development of plastic injection molding machines and its auxiliary equipment such as cooling tower, chiller, etc. Q: Where is your main selling market? A: We have business domestic,USA,Russia,Indonesia,Egypt,Turkey ,Uzbekistan, Pakistan,etc. Q: Will you offer field installation and operator training at the buyer's factory? A: Yes,we will arrange our skilled engineers for filed installation and training. Q: What is the delivery time(equipment production time)? A: It will be ready around 50 days after getting mutual confirmation about the order details and prepayment. Q: Do you also have source for molds and spare parts? A: Yes,we can offer with the competitive quality and reasonable price. Customized as required. Q: What is the standard of package? A: Wooden case packing for the auxiliary equipment, bare packing for the plastic injection molding machine. Full container shipment is highly suggest.

---
