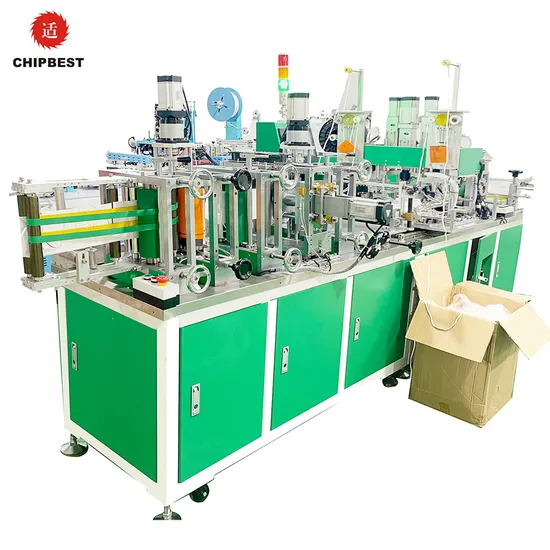

2022 Newest Technology FFP2 N95 Mask Machine Two-in-One Mask Machine for Adults and Children 150 -180PCS/Min Kids Mask Machine

Product Description

19 Servo Bus FFP2 Mask Machine Specifications
Introduction of Equipment: This machine is use to producing folding mask, from raw material feeding to final mask discharging, all steps complete automatically. And it's include below functions: constant tension material unwinder, nose wire insertion, body welding, tampo printing, ear-loop welding, breather valve hole cutting, final mask forming and cutting, and waste material collecting, saved lost of labour cost.
1.1Before moving the machine, you must first loosen the level adjustment screw located at the
bottom of the machine.
1.2 For the combination of parts that were disassembled when the machine was boxed, when
assembling, it must be combined according to the marks made when disassembling.
1.3Place the machine in an appropriate position. When it is necessary to fix it, please adjust
the horizontal adjustment screw to make the machine level.
2.1 Electric box Bus full-servo high-speed model 19 servo 5 stepping (bus system, high-speed
ear-pointing design, leading KN95 control system on the market, mature and stable) The
equipment
runs decibels, 60 decibels, high efficiency and stability. Achieve the highest
production efficiency of 130-180 pieces/min.
Work process: (Non-woven fabric) Feeding → Nose wire feeding and inserting → Ultrasonic mask body welding → Pressure feeding → Tampo Printing for logo → Ear band cutting and welding → valve hole cutting → Pressure feeding →Mask body folding → Pressure feeding → Forming welding →Press feeding→Registration adjustment→Mask body forming and cutting→Waste material collecting→Final Mask discharge out.
Equipment functions: Automatic alarm device. Each machine of material unwinder and the main machine is equipped with alarm light. When a failure occurs, it will flash for the first time and display it on the display. Automatic failure notification. If the error come out, the detail error information will showed in touch screen. Error history records. Customer can learn machine main error issue there, and provide a record for equipment maintenance and future equipment improvement. Raw material detection. When the fabric, ear-loop, nose wire of machine run out, machine will sense out and stop automatically. Meanwhile the alarm system will keep work and the touch sceen pops-up the position of material run out. Production speed: 150~180 pieces/min. Meet the requirements of the coil diameter below 800mm. The lifetime of cutting roll is 1-2 years, and cutter knife is a consumable part, normal lifetime is three months to half a year. Body machine equipped with 4 layers of material constant tension unwinding system, including mareial feeding motor and material lacking sensor. The equipment reserve a spare port (which can be connected to MES), for the future program and data management. At the same time, the mask machine provides a docking signal interface. When the back-end connection device is abnormal, the back-end device will give a signal to feedback that the mask machine suspends feeding.
The abnormal removal list and equipment maintenance instructions are posted in the electrical control box of the mask.
Machine specification

Machine Name	Fully Automatic Super High Speed Folding Mask Machine
Model No.	JS-FFP2-19 high-speed N95 FFP2 mask machine
Power Specifications	220V 50/60Hz
Capacity	130~180pcs/min
Machine Size	8240*1067*1982(L*W*H mm)
Machine Weight	3600kg
Power	6kw
Ultasonic Frequency	15K-20K Hz
Air Pressure	0.4-0.6MPa
Fabric adpot range	Width:<270mmm
Nose adpot range	4-6mm, Double wire
Ear-loop adpot range	4-6mm, Flat Band
Material gsm range	Total gsm< 160-200(One side)

Installation conditions According to the actual size of the site design and installation, does not affect the logistics and pedestrian channel. If the design can not meet the space requirements, it can be relaxed with the consent of Party A. Power supply: 50 Hz or single phase AC 220 V( ± 5%),50HZ. Air supply: compressed air pressure: 0.4-0.6mpa
Packing & Delivery
FAQ: 1. Are you a factory or trading company?
We are CE proved manufacturer specialized in automation equipment R&D and manufacturing in the fields of full automatic mask machines , sanitary napkin machines,SMT equipments and other industrial areas since 2009.
2. Where is your factory located?
Our factory is located in Dongguan,Guangdong,China. Warmly welcome your visit to our factory. As soon as your schedule settle down , we can arrange our driver to pick up you from airport .

3. How long is the warranty of your equipment?
One year warranty after receipt check upon delivery. And we will comprehensively provide you all kinds of technical support services in after-sale ! And also , our engineers are available to service machinery overseas to do help untill the machine is in good performance .

4. What is packing of this machine? Is it suitable for shipment?
Machine will be wrapped with shrink film to avoid any scartches,the outside packed by standard wooden case. It is suitable for shipment both by sea and by air . After you receive machine, it's better to carefully check the overall appearance of machine. Your comments back will be highly appreciated .
5. How about payment terms and lead time :
A: 50% deposit upon the contract , balance against check and acceptance before shipping.
B: It's around 3-5days after deposit paid .
(The lead time can be negioated according to specific situations)

---
