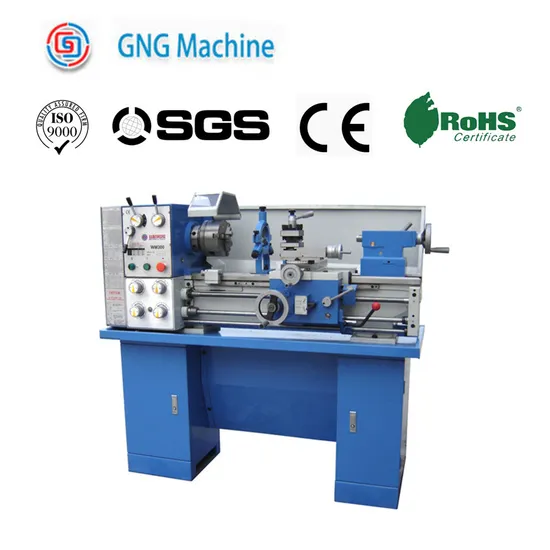

Metal Machining Bench Lathe

Product Description

Min. Order Quantity: 1 Set/Sets
Supply Ability: 300 Set/Sets per Month
Port: Qingdao/Shanghai
Payment Terms: L/C,T/T
Quick Details
Condition: New
Type: Horizontal
CNC or Not: Normal
Automatic Grade: Manual
Max. Swing Diameter: 300mm
Place of Origin: Shandong, China (Mainland)
Brand Name: Weihao
Model Number: CQ6230D
Voltage: 380v
Power(W): 1100w
Dimension(L*W*H): 173x75x151cm
Weight: 550kgs
Certification: CE
After-sales Service Provided: No overseas service provided
lathe machine in blue color: metal lathe machine can be all colour according customer like universal lathe:
Color: blue
Packaging & Delivery
Packaging Details: packed in plywood package. the customer can requested use te Carton Box or in wood case
Delivery Detail: 30-45days
Specifications
Cheaper price lathe /lathe machine
metal Bench lathe/ Hobby lathe machine/single phase lathe CQ6230 made for modulers' DIY

Model	CQ6230D
Max. swing over bed	300mm
Max. swing over cross slide	178mm
Max. swing in gap	430mm
Centers distance	750/914mm
Spindle bore	38mm
Taper of spindle bore	MTNO. 5
Spindle speeds	65-1400rpm (65-1810rpm optional)
Longitudinal feed per revolution of spindle(32kinds)	0.052-1.392mm/r0.002"
Cross feed per revolution of spidle(32kinds)	0.014-0.3448mm/r0.0007"
Metric thread can be cut(26kinds)	0.4-7mm
Inch threads can be cut (34kinds)	4-56TPI
Taper of tailstockquill sleeve	MTNO. 3
Power of motor	1.1KW / 1.5KW
Net weight	550kgs

---
