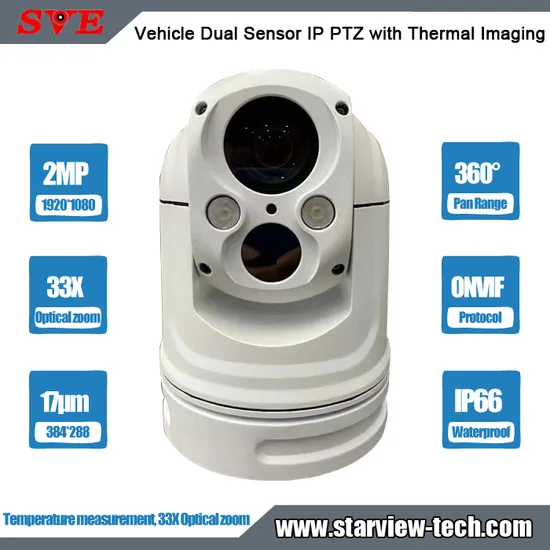

33X Opticol Zoom 2MP 384*288 17um 15mm len Smart Thermal Network Vehicle/on Board IP PTZ Security Camera Product Description 2.0MP 1/2.8" Progressive Scan CMOS;
Enclosed with aluminum housing and excellent sealing solution, the camera is designed with an ingress protection rating of IP66, protecting the internal components from dust, dirt and liquids.
The rugged, mobile mounting options make this camera ideal choice for many mobile surveillance
application:like law enforcement, vehicle surveillance, specialized robot, marine surveillance.
Detailed Photos
| Model |
| Model No. | SVN-30X71TH |
| Thermal Imaging |
| Array format/Pixel pitch | 384x288/17μm |
| Lens | 15mm(10mm, 19mm, 25mm Optional) |
| HOV | 25°X19° |
| F# | 1.0 |
| Black body |
| Temperature stability accuracy | ≤±0.5ºC |
| Target surface uniformity | ≤0.2ºC |
| Temperature measurement |
| Temperature range | 20ºC~50ºC |
| Temperature measurement accuracy | ≤±0.2ºC |
| Temperature correction | Built-in/external black body, automatic correction |
| Software function |
| Parameter setting | Video adjustment, Alarm temperature setting, Temperature measurement parameter setting, Full screen mode setting, Image segmentation settings, etc |
| Temperature measurement | Mouse temperature measurement, Temperature cursor overlay, Full screen maximum temperature / minimum temperature |
| Alarm | Multiple alarm temperature points, Alarm snapshot, Alarm switch, Alarm sound switch |
| Video recording | Video recording switch, Manual recording, Automatic recording |
| Historical data query | Query historical alarm data, Process historical alarm data |
| Visible Camera |
| Image Sensor | 2.0MP, 1/2.8" Progressive Scan CMOS |
| Effective pixel | 1920*1080, 2.0MP |
| Min. Illumination | Color:0.01 Lux; Black:0.0005Lux |
| Focal Length | 5.5-180mm; 33x optical zoom |
| Aperture Range | F1.5-F4.0 |
| HOV | 60.5-2.3°(wide-tele) |
| Minimum Working distance | 100mm(wide)-1000mm(tele) |
| Automatic control | ATW, Automatic gain, Auto exposure |
| Signal to noise ratio | ≥55dBG |
| BLC | On / off |
| Shutter | 1/25~1/100,000sec |
| Day/Night Switch | IR cut filter |
| Digital zoom | 16X |
| Focus mode | automatic / manual |
| Pan/Tilt |
| Pan Range | 360° (endless) |
| Pan Speed | 0.05° ~ 80°/s |
| Tilt Range | -25° ~ +90° |
| Tilt Speed | 0.05° ~ 60°/s |
| Proportional zoom | support |
| Preset | 255 |
| Power-off self-locking | support |
| Data interface | RJ45 10Base-T/100Base-TX |
| Frame rate | 25/30fps |
| Video compression | H.265/H.264/MJPEG |
| Interface Protocol | ONVIF |
| Network protocol | TCP/IP, ICMP, HTTP, HTTPS, FTP, DHCP, DNS, RTP, RTSP, RTCP, NTP, SMTP, IPv6 |
| Dual stream | support |
| Local storage | Micro SD card storage |
| Security | Password protection, Multi-user access control |
| General |
| Power | DC 10V-24V |
| Power consumption | 24w |
| Working temperature | -20ºC~65ºC |
| Working humidity | <90% |
| Ingress Protection | IP66,4000V lightning protection |
