High Frequency Oval Lifting Electro Magnet for Scraps

Product Description

High Frequency Oval Lifting Electro Magnet for Scraps
Description:
Oval Shape lifting electro magnet is suitable for lifting steel scraps in box-shaped cart.Complete set of equipment: Electro magnetic lifter,Rectification control cabinet, Cable reel, Cable connector etc.
Features:
1.Oval shape is suitable for using in Carriage shape,efficiently handle scraps.
2.With deep magnetic field and strong magnetic force,it can handle substantial scraps at a time.

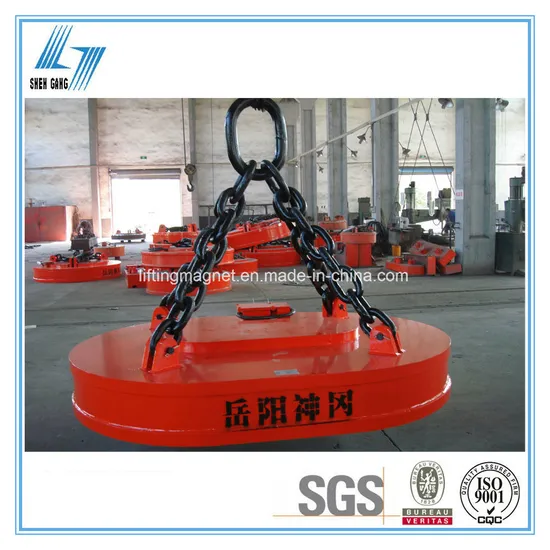

Overall dimension and Product pictures:
Technical Data:

Model	Electric current (A)	Cold-state power (kw)	lifting capacity (kg) cold/hot state		Mass (kg)	Overall dimension (mm)
			cast iron	steel scrap		A	B	C	D	E	F
MW61-180160L/1-75	113/78	32.7/15.5	2550/2000	1150/900	5000	1800	1600	1500	310	210	60
MW61-200150L/1-75	110/76	31.9/15.2	2200/1900	1000/800	4200	2000	1500	1300	250	180	70
MW61-200180L/1-75	142/108	41.2/23.8	2300/1900	1100/900	4500	2000	1800	1400	400	240	70
MW61-250150L/1-75	198/150	57.4/33	4000/3000	2000/1600	5000	2500	1500	1700	300	210	60
MW61-250180L/1-75	238/181	69.02/39.82	4500/3000	2200/1600	9000	2500	1800	1700	180	110	55
MW61-250200L/1-75	179/123	51.9/24.5	5000/4200	2500/1800	8400	2500	2000	2000	390	280	80
MW61-300150L/1-75	195/135	56.6/27	2400/2850	1500/1250	5700	3000	1500	1570	310	210	60
MW61-300180L/1-75	198.6/150	57.6/33	3500/2850	1600/1300	7500	3000	1800	1570	400	250	80
MW61-300200L/1-75	207/157.1	60/34.5	4000/3500	2500/2000	10500	3000	2000	1800	400	250	80
MW61-350220L/1-75	254.4/193	7308/42.5	7000/6000	3500/3000	12000	3500	2200	1955	400	300	80
MW61-360180L/1-75	240/180	69.6/39.6	5000/3500	2500/2000	11000	3600	1800	1955	400	250	80
MW61-400150L/1-75	182/138	52.8/30.4	4000/3500	2500/2000	8500	4000	1500	2350	410	260	80

Complete set of Equipment:
· Lifting Electro magnet;
· Spring type cable reel with cable;
· Rectifier control cabinet (Normal type,Strong excitation type, Battery back-up type);
· Cable connector / Quick coupling.
Company Information:
About Enquiry:
To help you get the best electro lifting magnet for your application, we should have the following information:
1. What are the materials you want to lift?
For example: Steel scraps, steel billet, ingot, plate, bar or ball. For steel plate, please let us know its dimension (Length× Width× Thickness mm)
2. What's the lifting capacity you expect?
3. What kind of working site does the magnet work? Indoor or outdoor?
4. Kindly provide your power supply information (__V,DC/AC,__Hz), and information for crane (single beam or double beam, single hook or double hook, how about its loading capacity).
5.Do you need full set with cable reel, control cabinet or only magnet?
6.Do you need FOB or CIF price, which port?
(More details, please feel free to contact us directly. )
Customers Visit and Certification:
Lifting Magnet Series:
--application for transporating steel scraps, steel plates, billets,etc.
Standard Export Package:
Angle steel welded frame and are fixed with five-layer plywood around the outside to keep safety long-distance transportation;Don't need to be fumigated.
Convenient Transportation:
All available shipping ways could be applied, by courier,air or sea.
Appointed shipping company or our own forwarders all could be used in shipment.
Full-way tracking the cargos for you till the goods arrive.
Quick Response:
We highly appreciate your any enquiry by email, fax or instant message.
We will reply your email or fax within 24 hours.
Please fell free to call us at any time if there is any questions.

---
