PVC Spiral Shisha Hose Suction Hose Spiral Hose Extrusion Machine

Product Description

Quality PVC Suction Hose Production Line
Product Introduction:
The line is applicable to the production of PVC plastic rib spiral reinforced hose. The level of automation and technological process has reached the adcanced international level. The hose produced by the machine has the advantages of high strength corrosion resistance, good running, etc. It is applicable to survey air, liquid and pellet. The hose are mainly used in such fiels as industry, agriculture, building, irrigation.This line is designed to produce PVC spiral reinforced hose, it consists two extruders, forming unit, bath, winder, the wall of which is soft PVC and rigid PVC helix as reinforced, featuring extrudsion resistance, corrosion resistance, negative pressure resistance, anti-bending, good negotiability,so it is suitable to converying gas,liquid and poder,widely used in industry,agriculture,construction and irrigation,etc.

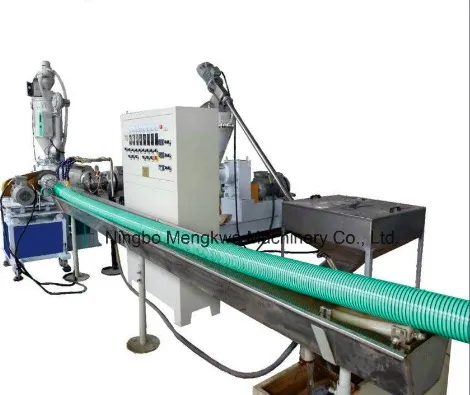

The PVC reinforced hose machinery is mainly composed of two extruders, spiral forming unit, water cooling tank, haul off, coiler etc.
This hose is also called PVC suction hose, which takes the advantages of extrusion resistance, corrosion resistance, negative pressure resistance, anti-bending, good liquidity.
So it is suitable to convey gas, liquid and powder, widely used in industry, agriculture, constructionn and irrigation, etc.

Production process
Raw material+additive→Mixing→Granulating→Conveying feeding→Single screw extruder→Steel wire forming machine→Extruding mould→Spray cooling water tank→Belt haul-off→Winder→packing
APPLICATION
It is suitable to converying gas, liquid and powder, widery used in industry, agriculture, construction and irrigation, etc Main Technical Parameters

Extruder model	First extruder	SJ-55x30	SJ-65 x30
	Second extruder	SJ-45x25	SJ-65x25
Diameter range(mm)		Ø 25- Ø50	Ø64- Ø 150
Haul-off speed(m/min)		2-10	0.2-2
Max. output (kg/h)		20-40	40-75
Total installed power(kw)		31	58
Actual power consumption(kw)		21	40
Overall dimension LxWxH(m)		15x4x2	16x5x2.5
Overall weight(kg)		3.2ton	4.3ton

---
