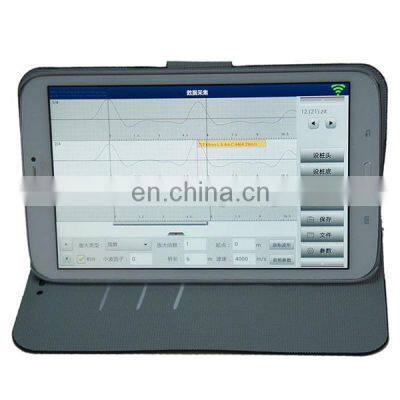

Product DescriptionApplication of A/D data collection Wireless foundation pile flaw tester: By using the reflected wave method, the instrument is used to assess the integrity of concrete pile and identify the extent and location of the pile defect. It can be used for testing drilled piles and hammer piles. It can also be used for testing the exposed top surface of constructions such as pillars.• Intelligent sensor can complete the acquisition work by himself, and upload the data to the computer through the WIFI, get rid of signal wire entanglement, efficient, fast and smooth; • True 24 bit A/D data acquisition, the test wave form is more real, to avoid the noise and signal distortion caused by large floating point amplification;• The real-time analysis of detected waves, a new wave let analysis in complex situations can be more accurate to judge pile integrity; • Intelligent upgrade detection software in the PAD onlineA/D data collection Wireless foundation pile flaw testerDetailed ImagesModelZBL-P8000 A/D data collection Wireless foundation pile flaw tester Control ModeA8 Embedded PlatformScreen5.7inch, High Brightness, TFT color LCD screenData Storage4GBOperation ModeKey + touch screenSentinel Magnify(time)1,2,5,10,20,50,100 adjustableA/D resoulution(bit)24(bit)Sampling time intervals(μS)1~64ms adjustableMax length of sampling4096TriggerSignal triggerNoise voltage of the system(mV)≤1mVDynarnic Range(dB)≥144Amplifier frequency range(Hz)10~10KTime value error4096Time resolving power(us)≤10%Gain Error(dB)≤1dBWork time(h)>8Number of channels2Interference between the channels≤1%Transducer Sensitivity100mv/g,acceleration modeFrequency range of Probe(Acceleration probe) (Hz)0.5~9000PortDouble USBMonitor5.4 inch, high brightness, TFT Color LCDPower supplyInternal:Built-in BatteryExternal: 220VAC/DCOperational ModeKey+Touch screenPacking & DeliverySTANDARD ACCESSORIES:• Wireless sensors • Pad Samsung Note 7"• Hammer stocked with interchangeable tips • Battery charger • Carrying caseContact UsTrade terms1. 18 Month's Warranty.2. Delivery time:4-7 working days after payments received3. MOQ:1 set.4. Service express company:TNT/DHL/FedEX.5. We accept T/T, Western Union, PayPal & Secure Payment.DALIAN TAIJIA TECHNOLOGY CO.,LTDNO.5 Shanshui Yuan, High-tech Industrial Zone Dalian, ChinaWhatsapp/Wechat:+8618842866177Skype: live:7ffcb0f91149cec8E-mail:commercial(at)web:A/D data collection Wireless foundation pile flaw tester
>>
