Whole Project 5000liters Oxygen Storage Tank Vessel Price

Product Description

Whole Project 5000Liters Oxygen Storage Tank Vessel Price Product Description

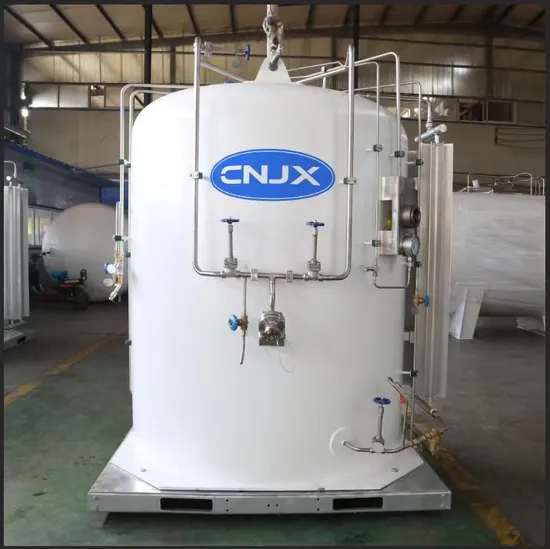

Cryogenic Liquid Oxygen Nitrogen Argon Storage Tank 5m3 is Vacuum-insulated pressure vessels for storage of liquid oxygen,Nitrogen, Argon. Our Liquid Oxygen Nitrogen Argon tanks are fitted with an economizer function - an automatic regulation system that helps maintain the working pressure and minimises losses in case of lower withdrawal rates. The density of the welding seams is subjected to a leakage test with helium, which secures long-term durability of the vacuum.
A Perlite that is added in between the inner and outer vessel ensures by means of absorption, the improvement and long-term stability of the vacuum during the operation of the tank. JX Liquid Oxygen Nitrogen and Argon Storage tank is a double cylinder structure, tube and pipe were used austenitic stainless steel manufacturing, outer cylinder with Q235-B/Q345R manufacturing, sandwich filled with perlite, and vacuum pumping, and setting the after special treatment of the adsorbent to extend the life of vacuum tank.
Cryogenic liquid Oxygen Nitrogen Argon tanks can be widely used in various industries, such as machine building, gas, chemical engineering, synthetic fiber, medical, food industry, mining, electronic, metallurgyand, etc
Detailed Photos

Product Name:	Whole Project 5000Liters Oxygen Storage Tank Vessel Price
Medium	LN2,LO2,LAr,
Effective Volume	5000L
Working pressure	8Bar
Overall dimension	Φ2000×5278mm
Weight	3640kg
Design temperature	-196ºC--40ºC
Outer cylinder material	Q345-R
Inner cylinder material	S30408
Insulation	Vacuum powder insulation

Product specification	Working Pressure	Dimension(mm)	Weight(kg)
5,000L	8Bar/(0.8Mpa)	φ2,,000 * 5,278	3,640kg
10,000L	8Bar/(0.8Mpa)	φ2,100 * 7,210	5,393kg
15,000L	8Bar/(0.8Mpa)	φ2,500 * 6,952	6,922kg
20,000L	8Bar/(0.8Mpa)	φ2,500 * 8,669	8,390kg
5,000L	16Bar/(1.6Mpa)	φ2,000 * 5,278	4,050kg
10,000L	16Bar/(1.6Mpa)	φ2,100 * 7,210	6,393kg
15,000L	16Bar/(1.6Mpa)	φ2,500 * 6,952	8,552kg
20,000L	16Bar/(1.6Mpa)	φ2,500 * 8,719	10,530kg

Certifications

Packaging & Shipping
Cryogenic liquid Oxygen Nitrogen Argon tanks were packaged by waterproof plastic material. If the customer has any requirements, we can also package according to customer requirements.

Company Profile
FAQ
1. Are you a manufacturer or a trading company?
Answer: We are professional manufacturer for cryogenic liquid gas storage tanks over 46 years.
2. Is there dicount if with large qty.?
Answer: Sure, we will provide you best competitive price as per your working needs, and big dicount with more qty.
3. What's your main product?
Answers: We have cryogenic storage tanks for liquid O2, liquid Ar2, liquid N2, and Liquid CO2, both vertical type and horizontal type. Also we have smaller type liquid nitrogen containers with various volumes from 2L to 100L.
4. Can I visit your company?
Answer: Yes, of course, you are welcome to visit our company for face to face meeting.
5. How shall I contact you for price?
Answer: Please send us inquiry.

---
