Disc Centrifugal Separation Machine for Lube Oil

Product Description

Centrifugal Separation Machine


Application of Centrifugal Separation Machine

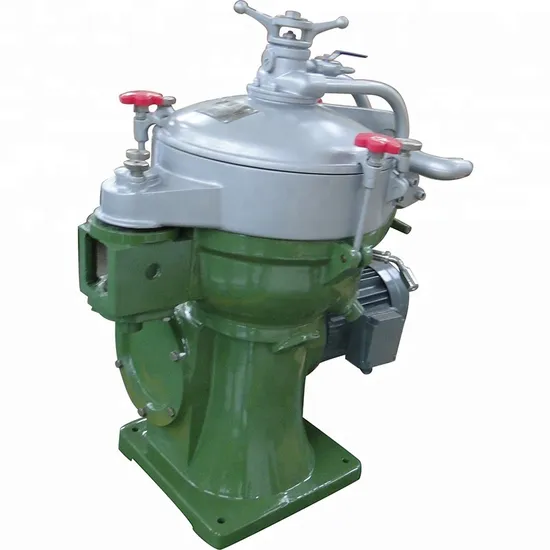

Centrifugal Separation Machine (Model SCS) is an effective oil purification system, which can separate substances of different specific gravity levels by means of centrifugal force, such as water and oil, substances being separated by centrifugal force if they have different specific gravities. This Centrifugal Oil Separator is widely used in lubricant oil treatment to remove water and solid particles.Model SCS Centrifugal Separating Machine developed by PureTech is Disc Centrifuge type, it uses centrifugal force to separate liquids with a lower concentration of solids and small particles. It is especially suitable for separating two liquid phases, as well as solid particles phase. When applying to lubricant oil filtration, it can keep the oil cleanliness by removing impurities and water, therefore avoid the wear and damage to the core components which requires clean lubricant oil.
When processing emulsified oils like turbine oil, we recommend our Vacuum Turbine Oil Filtration Machine (Model TOP) which has the demulsification device, it is especially suitable for emulsified oils.
Features of Centrifugal Separation Machine• High efficiency in oil filtration with high speed centrifugal force.
• Particularly suits for oils contains a lot of impurities and free water.
• No consumables, driven by centrifugal force.
• Electrical Heating system is installed to improve the fluidity while oil processing, so as to improve the effect.
• Extra filter cartridge is integrated to improve the oil cleanliness further.
• Multiple self-protection settings, alarm and emergency stop.
• PLC Automatic Control is OPTIONAL.
chnical Parameters of Centrifugal Separation Machine

Model	SCS-1500	SCS-2000	SCS-3000	SCS-4000	SCS-6000
Capacity, Liters/hour	1500	2000	3000	4000	6000
Working pressure, Mpa	≤ 0.2
Power supply	380V, 50Hz, 3Phase or as needed
Drum speed, r/min	7300 ~ 8300
Cleanliness, NAS	≤ 6
Sludge-discharge methods	Manual / Automatic
Lift head, m	≥ 20
Total Power, KW	28	33	38	43	57

* OPTIONAL CONFIGURATIONS: PLC automatic control system, Fully-Touch Screen, Explosion-proof type, Online Oil Testing Instruments, etc.
* Please inquire us for other flow rates or types.
* The machine size and weight will change slightly due to different configurations.

---
