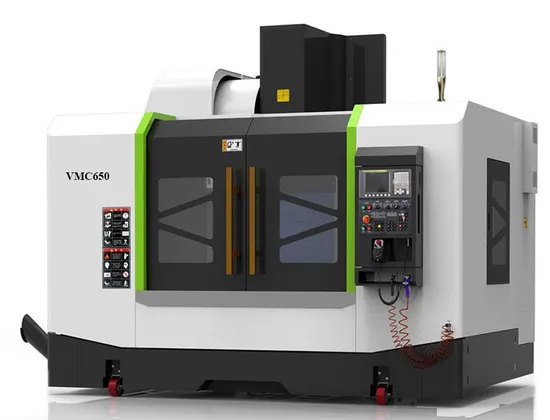

CNC Vertical Milling Machine Vmc650 with Fanuc Control System

Product Description

Product Description
The machine tool base, columns, spindle box, cross slide, and worktable are all made of high-strength lost foam casting technology. The internal metallographic structure is stable, ensuring the high stability of the basic parts. The casting structure has undergone machine tool dynamics analysis and finite element analysis to make its geometric structure more reasonable, and the appropriate matching with the reinforcing ribs ensures the high rigidity of the basic parts. Use high-rigidity and high-precision spindle from Taiwan KENTURN. Use high-precision and high-strength ball screws from Taiwan. The X, Y, and Z axes use Taiwan 45mm roller linear rails, and the slides are widened and enlarged. The roller heavy-duty linear rail can not only meet the customer's requirements for fast speed and high precision, but also can perform powerful cutting, while also increasing the service life. The machine is equipped with a sealed guide rail protective cover to effectively protect the guide rails and screws and extend their service life. The machine tool is equipped with three-dimensional full protection to ensure no vibration during strong chip cutting. Use Japanese FANUC CNC operating system, paired with an absolute servo motor, ensuring high stability, fast speed, smooth surface, and high precision. Double-pump automatic lubrication system: The guide rail lubrication uses a volume distributor with oil injection to supply the oil required for the guide rail regularly and quantitatively, reducing the waste of lubricating oil. The water tank is equipped with an oil-water separator to avoid environmental pollution. High-precision pitch compensation. At the same time, advanced ballbar is used to optimize the accuracy when processing circles and curved surfaces. Product Parameters

Item		Unit	Description
Spindle	Belt spindle specifications		BT40-150
	Speed	r/min	50~8000
	Spindle end face to worktable	mm	120-670
	Spindle center to column	mm	625
Worktable	Worktable size	mm	900×460
	T-slot number, width and spacing	mm	5×18×100
	Max. load	kg	400
Guide rail	Guide rail type		Roller linear guide for X, Y, Z axis
	Guide rail width for X, Y, Z axis	mm	35/35/45
Roller guide screw	X axis	mm	φ40×16 C3
	Y axis	mm	φ40×16 C3
	Z axis	mm	φ40×16 C3
Travel	X axis	mm	650
	Y axis	mm	450
	Z axis	mm	450
Fast moving speed	X axis	m/min	24
	Y axis	m/min	24
	Z axis	m/min	22
Cutting feed speed		m/min	1-8000
Control system			FANUC 0i-MF plus
Servo motor	Spindle motor	KW	7.5/11KW
	X, Y axis servo motor	KW	1.8/1.8
	Z axis servo motor	KW	3
Positioning accuracy for X, Y, Z axis		mm	300/±0.005
Repeatability accuracy for X, Y, Z axis		mm	300/±0.003
Air pressure		MPa	0.6-0.8
Machine weight		kg	5500
Machine size(L×W×H)		mm	2670×2078×2000mm

Equipment Configurations

No.	Name	No.	Name
1	Spindle pneumatic loose broach	8	Z-direction stainless steel cover
2	Handheld air gun	9	Anchor bolts and pads
3	Automatic lubrication system	10	Cooling horizontal water pump 270W
4	LED warning light	11	Rigid tapping
5	Electrical box dustproof device	12	RS-232 interface and USB function
6	24V work light	13	Power distribution box safety lock
7	XY guide rail stainless steel guard
