Guowang Factory Wholesale 0.6/1kv N2xcy N2xy N2X2y 120mm 150mm 185mm 240mm 1-5 Core Cu XLPE PVC Swa Sta Armored Copper Underground Power Cable Wire

Product Description

Product Description

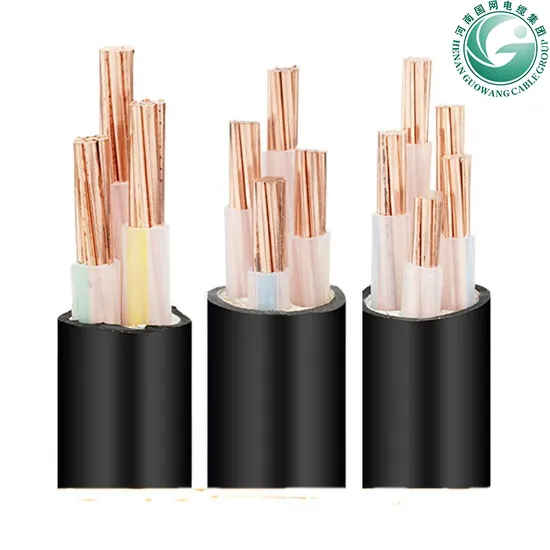

0.6/1KV Copper Conductor PVC Insulation PVC Sheath Power Cable 1. Standard
IEC 60502, 60228, 60332, 60331 DIN VDE 0276-620 HD 620 S1: 1996
2. Application This cable is used for fixed installations, such as distrubution networks or industrial installations. It can be installed in cable duct, trench or directly buried in earth.
3. Product Description 1) Rated Voltage: 0.6/1KV 3.6/6KV 6.5/11KV, 11KV, 33KV, 66KV, 132KV 2) Maxworking temperature: 75 °c 3) Maxtemperature during short circuit (≤5S): 250 °c 4) Conductor: class 1, 2 copper or aluminum 5) Sectional area: 1.5 - 800mm2 6) Insulation:PVC 7) No. of cores: 1, 2, 3, 4, 5 8) Armor: steel wire or steel tape for 3 core cables and non-magnetic material for single core 9) Oversheath: PVC 10) Minbeding radius: 15 times cable radius for single-core cables and 12 times for multi-core ones Structure Size

Rated voltage	No,of CORES	core ×cross secticn (MM)	CONDUCTOR	CORE DIANETER (MM2)	INSULATION THCKNESS (MM)	BELT (MM)	JACKET THICKNESS (MM)	Reference outer diameter (MM)	Reference weight (kg/km)	DC RESISTANCE (Ω/KM)
0.6/1KV	1	1×10	7/1.35	4.05	0.7	20×0.20	1.4	8.9	152.7	1.83
	1	1×16	7/1.66	4.98	0.7	20×0.20	1.4	9.9	208.2	1.15
	1	1×25	7/2.14	6.42	0.9	20×0.20	1.4	11.6	318.3	0.727
	1	1×35	7/2.52	7.56	0.9	20×0.20	1.4	12.8	418	0.524
	1	1×50	10/2.52	8.4	1	25×0.20	1.4	13.8	544	0.387
	1	1×70	14/2.52	10	1.1	30×0.20	1.4	15.6	736.7	0.268
	1	1×95	19/2.52	11.6	1.1	35×0.20	1.5	17.4	987.8	0.193
	1	1×120	24/2.52	13	1.2	40×0.20	1.5	19	1226.7	0.153
	1	1×150	30/2.52	14.6	1.4	45×0.20	1.6	21.2	1522.6	0.124
	1	1×185	37/2.52	16.2	1.6	50×0.20	1.6	23.2	1860	0.0991
	1	1×240	48/2.52	18.5	1.7	55×0.20	1.7	25.9	2386.3	0.0754
	1	1×300	61/2.52	20.6	1.8	60×0.20	1.8	28.4	3000.1	0.0601
	1	1×400	61/2.94	23.3	2	60×0.20	1.9	32.2	3870	0.047
	1	1×500	60/3.29	26.6	2.2	60×0.20	2	35.6	4951	0.0366
	1	1×630	60/3.69	29.6	2.4	60×0.20	2.2	39.4	6204.5	0.0283
	2	2×1.5	1/1.38	1.38	0.7	20×0.20	1.8	9.8	122.1	12.1
	2	2×2.5	1/1.78	1.78	0.7	20×0.20	1.8	10.6	151.8	7.41
	2	2×4	1/2.25	2.25	0.7	20×0.20	1.8	11.6	193.9	4.61
	2	2×6	1/2.76	2.76	0.7	20×0.20	1.8	12.6	245.8	3.08
	2	2×10	7/1.35	4.05	0.7	30×0.20	1.8	15.2	352.1	1.83
	2	2×16	7/1.66	4.98	0.7	35×0.20	1.8	17.2	479.7	1.15
	2	2×25	7/2.14	6.42	0.9	40×0.20	1.8	20.6	733	0.727
	2	2×35	7/2.52	7.56	0.9	50×0.20	1.8	23	959.5	0.524
	2	2×50	10/2.52	5.7×13.5	1	40×0.20	1.8	19.6	1083.6	0.387
	2	2×70	14/2.52	7.0×15.6	1.1	45×0.20	1.8	22.6	1473.8	0.268
	2	2×95	19/2.52	8.3×18.0	1.1	55×0.20	1.9	25.4	1975.8	0.193
	2	2×120	24/2.52	8.9×20.8	1.2	60×0.20	2	27.2	2461.9	0.153
	2	2×150	30/2.52	10.0×23.1	1.4	60×0.20	2.2	30.6	3066.9	0.124
	2	2×185	37/2.52	11.1×25.7	1.6	60×0.20	2.3	33.8	3765.6	0.0991
	2	2×240	48/2.52	12.5×29.1	1.7	60×0.20	2.5	37.4	4833.1	0.0754
	2	2×300	61/2.52	15.0×32.2	1.8	60×0.20	2.6	43	6091.7	0.0601
	3	3×1.5	1/1.38	1.38	0.7	20×0.20	1.8	10.2	144.1	12.1
	3	3×2.5	1/1.78	1.78	0.7	20×0.20	1.8	11.1	182.9	7.41
	3	3×4	1/2.25	2.25	0.7	20×0.20	1.8	12.2	240	4.61
	3	3×6	1/2.76	2.76	0.7	20×0.20	1.8	13.3	311.6	3.08
	3	3×10	7/1.35	4.05	0.7	30×0.20	1.8	16.1	456.4	1.83
	3	3×16	7/1.66	4.98	0.7	35×0.20	1.8	18.2	630.8	1.15
	3	3×25	7/2.14	6.42	0.9	45×0.20	1.8	21.9	981.5	0.727
	3	3×35	7/2.52	7.56	0.9	50×0.20	1.8	24.5	1298	0.524
	3	3×50	10/2.52	7.0×11.5	1	50×0.20	1.8	23.2	1578.5	0.387
	3	3×70	14/2.52	8.0×13.7	1.1	55×0.20	1.9	25.9	2158	0.268
	3	3×95	19/2.52	9.5×15.8	1.1	60×0.20	2	29.3	2902.1	0.193
	3	3×120	24/2.52	10.8×18.6	1.2	60×0.20	2.1	32.7	3636.5	0.153
	3	3×150	30/2.52	12.5×20.5	1.4	60×0.20	2.3	37.5	4537.4	0.124
	3	3×185	37/2.52	14.3×23.3	1.6	60×0.20	2.4	42.3	5584.6	0.0991
	3	3×240	48/2.52	16.3×26.2	1.7	60×0.20	2.6	47.4	7178.8	0.0754
	3	3×300	61/2.52	18.0×29.8	1.8	60×0.20	2.7	51.6	9012.4	0.0601
	4	4×1.5	1/1.38	1.38	0.7	20×0.20	1.8	11	169.8	12.1
	4	4×2.5	1/1.78	1.78	0.7	20×0.20	1.8	11.9	221.2	7.41
	4	4×4	1/2.25	2.25	0.7	20×0.20	1.8	13.2	293.9	4.61
	4	4×6	1/2.76	2.76	0.7	20×0.20	1.8	14.4	385.7	3.08
	4	4×10	7/1.35	4.05	0.7	35×0.20	1.8	17.5	572.6	1.83
	4	4×16	7/1.66	4.98	0.7	40×0.20	1.8	19.9	800	1.15
	4	4×25	7/2.14	6.42	0.9	50×0.20	1.8	24	1254.7	0.727
	4	4×35	7/2.52	7.56	0.9	60×0.20	1.8	26.9	1667.3	0.524
	4	4×50	10/2.52	7.5×10.5	1	55×0.20	1.8	25.1	2058.2	0.387
	4	4×70	14/2.52	9.1×12.5	1.1	60×0.20	2	29.5	2848.2	0.268
	4	4×95	19/2.52	11.0×13.3	1.1	60×0.20	2.1	33.8	3838.2	0.193
	4	4×120	24/2.52	12.0×17.0	1.2	60×0.20	2.3	36.9	4817.3	0.153
	4	4×150	30/2.52	13.9×19.7	1.4	60×0.20	2.4	42.1	5987.1	0.124
	4	4×185	37/2.52	15.2×21.2	1.6	60×0.20	2.6	46.3	7375.8	0.0991
	4	4×240	48/2.52	17.3×24.3	1.7	60×0.20	2.8	51.7	9480.4	0.0754
	4	4×300	61/2.52	19.5×27.9	1.8	60×0.20	3	57.4	11951.3	0.0601
	5	5×1.5	1/1.38	1.38	0.7	20×0.20	1.8	11.8	197.6	12.1
5	5×2.5	1/1.78	1.78	0.7	20×0.20	1.8	12.8	260.3	7.41
5	5×4	1/2.25	2.25	0.7	20×0.20	1.8	14.2	350.8	4.61
5	5×6	1/2.76	2.76	0.7	20×0.20	1.8	15.5	463.3	3.08
5	5×10	7/1.35	4.05	0.7	40×0.20	1.8	19.1	695.7	1.83
5	5×16	7/1.66	4.98	0.7	45×0.20	1.8	21.8	977.7	1.15
5	5×25	7/2.14	6.42	0.9	55×0.20	1.8	26.3	1538.7	0.727
5	5×35	7/2.52	7.56	0.9	60×0.20	1.8	29.6	2052.9	0.524
5	5×50	10/2.52	4.8×14.2	1	60×0.20	1.9	27.4	2549.7	0.387
			8.4	1
5	5×70	14/2.52	5.7×16.8	1.1	60×0.20	2.1	31.7	3523.7	0.268
			10	1.1
5	5×95	19/2.52	6.7×19.6	1.1	60×0.20	2.2	35.5	4744	0.193
			11.6	1.1
5	5×120	24/2.52	7.9×21.9	1.2	60×0.20	2.4	40.2	5972.8	0.153
			13	1.2
5	5×150	30/2.52	8.5×24.6	1.4	60×0.20	2.6	44.4	7425.2	0.124
			14.6	1.4
5	5×185	37/2.52	9.4×27.2	1.6	60×0.20	2.8	49.2	9151.1	0.0991
			16.2	1.6
5	5×240	48/2.52	10.8×31.0	1.7	60×0.20	3	55.2	11768.5	0.0754
			18.5	1.7
5	5×300	61/2.52	12.2×34.4	1.8	60×0.20	3.2	61	14833.3	0.0601
			20.6	1.8
5	3×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.8	12.9	253.2	4.61
		1/1.78	1.78	0.7
5	3×4+2×2.5	1/2.25	2.25	0.7	20×0.20	1.8	13.7	268.8	4.61
		1/1.78	1.78	0.7
		1/1.78	1.78	0.7
4	3×6+1×4	1/2.76	2.76	0.7	20×0.20	1.8	14.1	326.9	3.08
		1/2.25	2.25	0.7
5	3×6+2×4	1/2.76	2.76	0.7	20×0.20	1.8	15	347	3.08
		1/2.25	2.25	0.7
		1/2.25	2.25	0.7
4	3×10+1×6	7/1.35	4.05	0.7	35×0.20	1.8	16.9	525.3	1.83
		7/1.04	3.12	0.7
5	3×10+2×6	7/1.35	4.05	0.7	35×0.20	1.8	18	602.8	1.83
		7/1.04	3.12	0.7
		7/1.04	3.12	0.7
4	3×16+1×10	7/1.66	4.98	0.7	40×0.20	1.8	19.3	744.3	1.15
		7/1.35	4.05	0.7
5	3×16+2×10	7/1.66	4.98	0.7	40×0.20	1.8	20.7	865.1	1.15
		7/1.35	4.05	0.7
		7/1.35	4.05	0.7
4	3×25+1×16	7/2.14	6.42	0.9	50×0.20	1.8	23	1142.9	0.727
		7/1.66	4.98	0.7
5	3×25+2×16	7/2.14	6.42	0.9	50×0.20	1.8	24.5	1314.5	0.727
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×35+1×16	7/2.52	7.56	0.9	55×0.20	1.8	25.2	1451.1	0.524
		7/1.66	4.98	0.7
5	3×35+2×16	7/2.52	7.56	0.9	55×0.20	1.8	26.4	1616.6	0.524
		7/1.66	4.98	0.7
		7/1.66	4.98	0.7
4	3×50+1×25	10/2.52	7.2×10.8	1	55×0.20	1.8	25.5	1839.9	0.387
		7/2.16	6	0.9
5	3×50+2×25	10/2.52	5.0×14.3	1	55×0.20	1.8	25.1	2077.1	0.387
		7/2.16	6	0.9
		7/2.16	6	0.9
4	3×70+1×35	14/2.52	9.0×13.0	1.1	60×0.20	1.9	30.3	2523	0.268
		7/2.52	7	0.9
5	3×70+2×35	14/2.52	6.0×16.8	1.1	60×0.20	2	28.9	2845	0.268
		7/2.52	7	0.9
		7/2.52	7	0.9
4	3×95+1×50	19/2.52	10.7×14.5	1.1	60×0.20	2.1	34.6	3428.7	0.193
		10/2.52	8.4	1
5	3×95+2×50	19/2.52	7.2×19.7	1.1	60×0.20	2.1	33	3871.9	0.193
		10/2.52	8.4	1
		10/2.52	7.1×11.5	1
4	3×120+1×70	24/2.52	11.5×17.3	1.2	60×0.20	2.2	37.1	4338.4	0.153
		14/2.52	10	1.1
5	3×120+2×70	24/2.52	8.0×22.1	1.2	60×0.20	2.3	37.1	4994.5	0.153
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×150+1×70	30/2.52	13.2×19.4	1.4	60×0.20	2.3	42.2	5231.4	0.124
		14/2.52	10	1.1
5	3×150+2×70	30/2.52	9.1×24.3	1.4	60×0.20	2.4	40.3	5867.5	0.124
		14/2.52	10	1.1
		14/2.52	7.8×13.1	1.1
4	3×185+1×95	37/2.52	15.0×22.3	1.6	60×0.20	2.5	47.6	6540.7	0.0991
		19/2.52	11.6	1.1
5	3×185+2×95	37/2.52	10.2×27.2	1.6	60×0.20	2.5	45.1	7383.7	0.0991
		19/2.52	11.6	1.1
		19/2.52	9.2×14.7	1.1
4	3×240+1×120	48/2.52	17.7×23.7	1.7	60×0.20	2.6	54.5	8370.8	0.0754
		24/2.52	13	1.2
5	3×240+2×120	48/2.52	11.5×29.2	1.7	60×0.20	2.7	50	9436.1	0.0754
		24/2.52	13	1.2
		24/2.52	9.9×16.4	1.2
4	3×300+1×150	61/2.52	19.2×28.3	1.8	60×0.20	2.8	58.9	10508	0.0601
		30/2.52	14.6	1.4
5	3×300+2×150	61/2.52	13.0×33.2	1.8	60×0.20	2.9	55.6	11860.4	0.0601
		30/2.52	14.6	1.4
		30/2.52	10.6×17.9	1.4
5	4×4+1×2.5	1/2.25	2.25	0.7	20×0.20	1.8	13.9	309.8	4.61
		1/1.78	1.78	0.7
5	4×6+1×4	1/2.76	2.76	0.7	20×0.20	1.8	15.3	404.1	3.08
		1/2.25	2.25	0.7
5	4×10+1×6	7/1.35	4.05	0.7	35×0.20	1.8	18.5	648.8	1.83
		7/1.04	3.12	0.7
5	4×16+1×10	7/1.66	4.98	0.7	45×0.20	1.8	21.2	921.3	1.15
		7/1.35	4.05	0.7
5	4×25+1×16	7/2.14	6.42	0.9	55×0.20	1.8	25.4	1428.5	0.727
		7/1.66	4.98	0.7
5	4×35+1×16	7/2.52	7.56	0.9	60×0.20	1.8	28	1836.6	0.524
		7/1.66	4.98	0.7
5	4×50+1×25	10/2.52	5.5×13.4	1	55×0.20	1.9	26.3	2320.3	0.387
		7/2.16	6	0.9
5	4×70+1×35	14/2.52	6.7×15.8	1.1	60×0.20	2	30.3	3179.6	0.268
		7/2.52	7	0.9
5	4×95+1×50	19/2.52	7.7×18.3	1.1	60×0.20	2.2	34.2	4316.2	0.193
		10/2.52	8.4	1
5	4×120+1×70	24/2.52	9.5×20.8	1.2	60×0.20	2.3	40.1	5494.4	0.153
		14/2.52	10	1.1
5	4×150+1×70	30/2.52	10.0×22.9	1.4	60×0.20	2.5	42.3	6647.9	0.124
		14/2.52	10	1.1
5	4×185+1×95	37/2.52	10.8×25.6	1.6	60×0.20	2.6	46.7	8254.5	0.0991
		19/2.52	11.6	1.1
5	4×240+1×120	48/2.52	12.6×28.9	1.7	60×0.20	2.9	52.6	10616.3	0.0754
		24/2.52	13	1.2
5	4×300+1×150	61/2.52	13.8×32.2	1.8	60×0.20	3.1	57.6	13352.6	0.0601
		30/2.52	14.6	1.4
