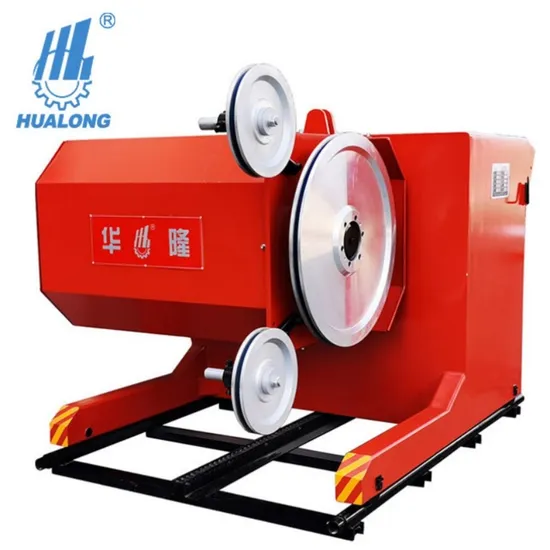

Diamond Wire Saw Cutting Machine for Granite and Marble Stone Quarry Mining

Product Description

Product ApplicationDiamond Wire Saw HSJ-55A available for cutting at any direction: horizontal, vertical and acclivitous, is suitable for quarry to mine large specification and regular blocks, such as marble, granite, quartzite, basalt etc. also good for bridge, reinforced concrete and other construction cutting.

TECHNICAL DATA
Model Number		HSJ-45A	HSJ-55A	HSJ-75A
Power of main motor	kw	45	55	75
Length of wire	m	20-100	20-120	20-150
Diameter of bead	mm	11.5	11.5	11.5
Linear velocity	m/s	0-30	0-30	0-40
Lead rail moving distance	m	6	6	6
Diameter of driving wheel	mm	Φ700	Φ700	Φ700
Gross weight	kg	1400	1500	1600
Dimension (L x W x H)	cm	120x120x140	120x120x140	120x120x140

Main Features1) Easy operation and mantain
2) Automatic speed regulation, suitable for different hardness ore cutting requirements.
3) Small cutting jitter, small cutting seam, high rate of finished block product.
4) Low noise while machine is operating
5) Low energy consumption
6) Automatic ending function, more efficient and safe
Our ServicePre-Sales Service* Inquiry and consulting support.
* Sample testing support.
* View our Factory.
After-Sales Service* Training how to instal the machine, training how to use the machine.
* Engineers available to service machinery overseas.
