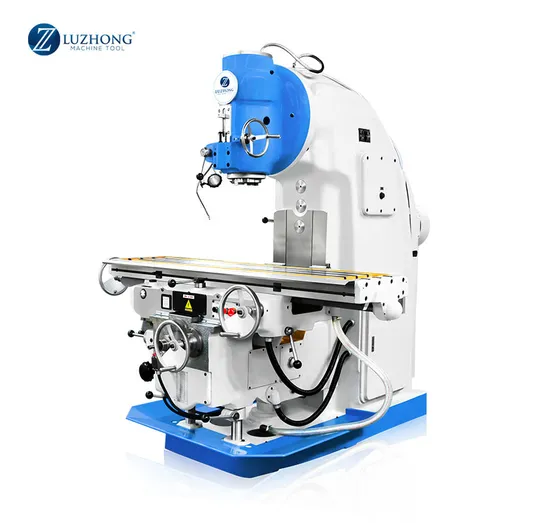

CE EAC universal vertical conventional metal cutting X5040 milling machine

Product Description

High precision vertical conventional X5040 milling machine with CE
Product Description
Product Parameters

SPECIFICATIONS	Units	X5040
Table size	mm	1700*400
Table load	kg	800
T slot(n umber-width* pitch)	-	3-18*90
		900/880
Table travel(manual/auto)	mm	315/300
		385/365
Table feed range	mm /min	XY:23.5-1180 Z:8-394
Table rapid traverse	mm /min	XY:2300 Z:770
Spindle taper	-	ISO50 7:24
Spindle speed range(steps)	rpm	30-1500 (18)
Swivel angle of vertical milling head	o	±45
Distance between spindle nose and table surface	mm	130-515
Main motor power	kw	11
Feed motor power	kw	1.5
Machine weight	kg	4250/4500
Overall dimension	mm	2560*2160*2300

Detailed Photos

Company Profile

FAQ
1:How can I choose the most suitable machines ?
A: Please tell me your specifications ,we can choose the best model for you , or you can choose the exact model .
You can also send us the products drawing ,we will choose the most suitable machines for you .

2: What's your main products of your company?
A: We specialized in all kinds of machines ,such as CNC Lathe Machine ,CNC Milling Machine ,Vertical Machining Center ,Lathe Machines ,Drilling Machine ,Radial Drilling Machine ,Sawing Machine ,Shaper machine and so on .

3: Where is our factory located? How can I visit there?
A : Our factory is located in Tengzhou City ,Shandong Province,277500 China. You are warmly welcomed to visit us.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5: What's the Payment Terms ?
A : T/T ,30% initial payment when order ,70% balance payment before shipment ;
Irrevocable LC at sight .

5: What's the MOQ?
A: 1 set .(Only some low cost machines will be more than 1 set )

---
