Versatile Foam Shredding Equipment for Recycling and Processing

Product Description

Foam Shredding Machine
Model:F-01

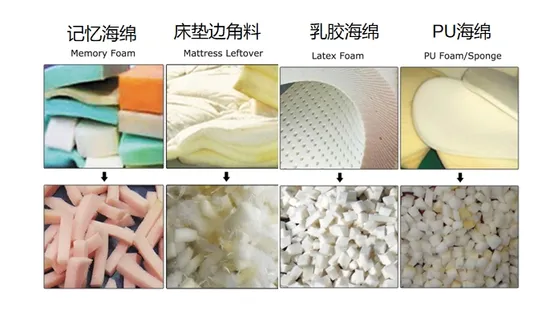

The Recycle Foam Cutting Machine is ideal for reusing waste materials, memory foam,sponge,mattress leftover and latex foam, etc. The cutting machine can cut the recycled material into regular pieces (foam sticks), so that the waste material can be fully reusing to fill pillows, cushions, toys, etc.
-Spiral Shear Knife: Built-in with the function of automatic sharpening,the machine is with powerful cutting ability and fast cutting speed.
-Well-resistant Slitter Knife: The circular slitting cutter is with high strength and good wear resistance, with hardness of 60-62hrc. lt can be used for more than 10 years without sharpening.
-Three Frequency Converters: Each group of knife has a frequency converter to control the cutting speed.
- Jam Alarm System: Once the machine is clogged, it will send an alarm to protect the safety of opeartor and machine.
- Automatic Tension on Belt: The machine has an automatic belt tension function.
The difference between F-01-A and F-01-C

Ideal for the recycling of foam to make filling materials and rebound foam. For the uniform shape of the foam articles, which can be varied wish. -- Suitable for cutting foam, memory foam, latex into regularly pieces (adjusted length 5~20mm). -- No dust generated when cutting. The size of the production is adjustable. -- Latest design. With the most comprehensive functions, the highest production efficiency!
Model	F-01-A		F-01-C
Power	8.75Kw		12.75Kw
Conveyor Belt	630mm		450mm & 630 mm
Capacity	200~250Kg/H (mattress leftover :200Kg/H)		200~250Kg/H (mattress leftover :200Kg/H)
Cutting size	5~24mm(length)*10mm(width)* Raw Material Thickness		5~24mm(length)*10mm(width)*10mm (adjusted length 5~24mm)
Material thickness	<40 mm		<140 mm (Latex foam and memory foam <100mm)
Dimensions	2100*1150*1250mm		3200*1150*1340mm
Item Weight	900KGS		1500KGS

Machine features

	Working Width 630mm The working width is 630 mm, which is the largest in the same kind of machines. With stronger production capacity.
	Spiral Shear Knife Powerful cutting ability and fast cutting speed. Knife width is 630mm. It's built-in with the function of automatic sharpening. When grinding, it can be done on the machine without dismantling.
	Slitter Knife The circular slitting cutter is customized by a professional cutter factory, and its hardness is 60-62hrc, with high strength and good wear resistance. It can be used for more than ten years without sharpening.
	Three Frequency Converters Each group of knife has a frequency converter to control the cutting speed. It can easily control the output and the size of the finished particle.
	Jam Alarm Once the machine is clogged, the machine will send an alarm to protect the safety of operator and machine.
	Automatic Tension on Belt The machine has automatic belt tension function. In the process of using the old model, the belt is easy to deviate, which will cause blockage, belt wear and even fracture. Our design well solves this problem, without manual belt tension, greatly reducing the failure rate and improving the production efficiency.

---
