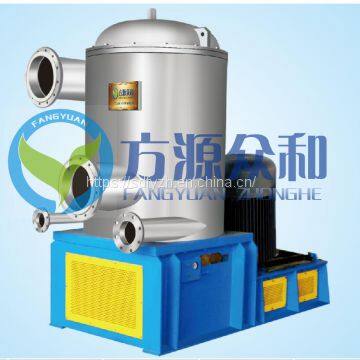

FGY high consistency pressure screen is an advanced fine selected equipment, it can not only be used for pulp making system, low&high consistency screening for various kinds of pulp, but also fine selection for paper machine.
This machine uses the pressure difference inside and outside the sieve drum and the positive pressure of the head of the rotor as the screening power. The pressure pulse produced by the high-speed rotary wing is self cleaning. The unscreened slurry enters the sieve drum continuously along the tangent direction from the inlet pulp. The qualified fiber flows through the sieve holes (or screen seams) to the sieve drum and it is discharged through the good slurry pipe, slurry remaining in the sieve drum is discharged through the bottom of the slag drum under the push of pulp flow and rotor wing. It has the characteristics of wide application range, high screening efficiency, high production capacity, long service life, compact structure and so on.
FGY HIGH CONSISTENCY PRESSURE SCREEN(COARSE SCREENING)
| Model | FGY-0.5
| FGY-1.2
| FGY-1.5
| FGY-2.0
| FGY-2.5
| FGY-3.0
| FGY-4.0
| FGY-5.0
|
| Dimension of screen hole(mm) | φ1.2-φ4
|
Screening area(m2)
| 0.5 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
Concentration of inflow&output pulp(%)
| 1.5-3.0 |
Power of motor(kw)
| 45 | 75 | 90 | 110 | 132 | 132-160 | 185-220 | 250-315 |
Production capacity(t/d)
| 30-70 | 70-150 | 90-165 | 120-180 | 150-250 | 180-420 | 250-540 | 400-800 |
FGY HIGH CONSISTENCY PRESSURE SCREEN(FINE SCREENING)
| Model | FGY-0.5
| FGY-1.2
| FGY-1.5
| FGY-2.0
| FGY-2.5
| FGY-3.0
| FGY-4.0
| FGY-5.0
|
| Dimension of screen hole(mm) | φ0.15-φ0.45
|
Screening area(m2)
| 0.5 | 1.2 | 1.5 | 2.0 | 2.5 | 3.0 | 4.0 | 5.0 |
Concentration of inflow&outputpulp(%)
| 0.8-2.0 |
Power of motor(kw)
| 30 | 45 | 55 | 75-90 | 90-110 | 110-132 | 132-160 | 185-200 |
Production capacity(t/d)
| 10-40 | 25-100 | 50-140 | 70-160 | 90-180 | 120-280 | 180-400 | 280-600 |
Our Services
Fangyuan Zhonghe has a complete sales service system, which is composed of marketing, distribution management, direct sales business, technical support, after-sales service, regional development and other parts of the network throughout the country. These network nodes form an organic whole with the company headquarters and serve the users wholeheartedly.
Company Information
Shandong Fangyuan Zhonghe Machinery Co., Ltd(Formerly Zhucheng Fangyuan Machinery Co., Ltd) is the backbone enterprise specializing in the production of environmentally-friendly pulping equipment, tissue paper machine and sewage treatment equipment, the main products include two categories, more than 50 series, the production of paper pulp making equipment, such as FGY High consistency pressure screen, sewage treatment equipment, with high technical content, it has reached the domestic advanced level in the same industry.
Fangyuan Zhonghe adhere to the business purpose and policy of "custom is the first" and "unity and pragmatism, striving for excellence", introduces the modern science and technology and management methods, and constantly introduce excellent talents and modern equipment, breaks through innovation, strives for excellence, the excellent quality makes company's products develop continuously in the fierce market competition. The FGY High consistency pressure screen we manufactured were sold well all over the country and exported to Southeast Asia, Central Asia, Africa and other countries and regions.
With the rapid development of the national economy and the requirement of the sustainable development and harmonious development, environmental protection is playing a more and more important role. China's environmental protection industry is facing unprecedented opportunities for development. To improve the living environment of mankind and write a brilliant chapter of Chinese environmental protection industry, we will make unremitting efforts and have succeeded in carrying out an assignment. Our company warmly welcomes friends and business colleagues all over the world to come and guide us in creating a better future for environmental protection.
FAQ
Q1. Are you a manufacturer?
A: Yes, we have been concentrating on this series of products for more than 20 years of experience
Q2. How to install the FGY High consistency pressure screen?
A: We can give you guide by video, voice, email by all kinds of chatting APP
If there's still doubt, we can arrange the professional engineer to install in your country
Q3. How do you pack the FGY High consistency pressure screen?
A: Normally as the export standard or as your needs
Q4. What is your available port of shipment?
A: Qingdao port, etc.
Q5. Do you offer guarantee for the FGY High consistency pressure screen?
A: Yes, under the right condition, we can offer time warranty for our products
>>
