Advanced Polypropylene Sink Countertop Machine for Custom Manufacturing

Product Description

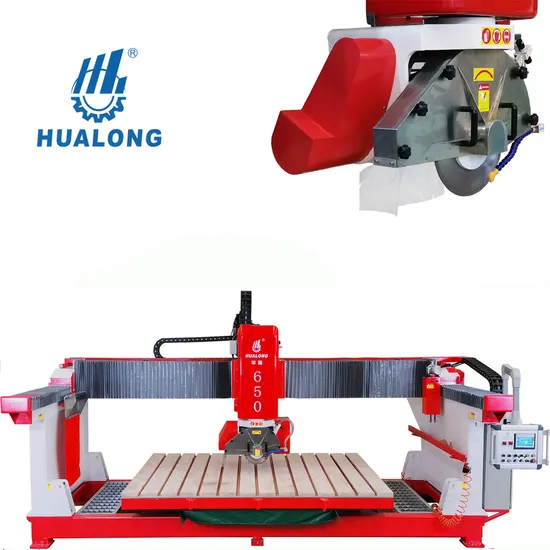

Full Automatic Bridge Stone Cutting Machine HLSQ-650, produced by Fujian Hualong Machinery Co., Ltd, is a practical and efficient stone slab cutting bridge machine. The maximum machining stroke of x-axis is 330cm, that of y-axis is 200cm, and that of z-axis is 30cm. And this machine is specially developed for small and medium stone processing plants. Especially for companies that need multifunctional affordable machines.

Feature
(1) Convenient product installation, needn't technician cooperation.
(2) 0-360° head rotation and pause every 90° for perfect cutting accuracy. Some other company's product only the table can rotate, so that the cutting will not be accurate.
(3) Cutting head directly incline 45° for 45° chamfering cutting.
(4) This machine adopts Siemens control system. Siemens, Schneider Electric, Taiwan Hiwin rail and other international brands of high-quality accessories. Professional design, exquisite manufacturing.
(5) The worktable can be tilted from 0 ° to 85 ° to facilitate feeding, and can be rotated from 0 ° to 360 ° to meet the needs of various cutting angles.
(6) Good performance and long service life. (There are many similar products in the market, but the performance is not necessarily better than ours, because our company has been producing this kind of machines for more than ten years.)

Technical Data
Name	Unit	HLSQ-650
Diameter Of Saw Blade	mm	Φ400 - Φ650
Dimensions Of Working Platform	mm	3300x2000
Max. Cutting Thickness	mm	190
Max. Lifting Stroke	mm	300
Power Of Main Motor	kw	15
Power Of Lifiting Motor	kw	1.5
Power Of Main Motor	kw	15
Gross Power	kw	21.3
Water Consumption	m3/h	2
Dimensions (LxWxH)	mm	5750x3600x3400
Gross Weight	kg	5800

Function
(1) Slab cut to square size, batch processing
a. Set processing parameters and determine the processing origin.
b. Turn the manual/automatic knob to automatic. Start the full-automatic vertical and horizontal cutting.
(2) Variable square size or other polygonal cut to size processing
(3) Round desktop processing( through 0 ° to 360 ° rotating of the worktable)
(4) Profiling Cutting (Optional)
Application
Workshop
Our Service
·All of our machine will be full-checked and tested by our quality control department before shipment.
·Lifetime technology maintenance in free
·Spare parts supply in free due to our defects within 12 months' warranty time and at cost out of 12 months.
·Free training for installation, operation and maintaince.
·Technical support all working days.
·English version 'instruction books', "Operation Manual" will be offered.

Packaging & Loading
1)All parts wrapped by waterproof PE film and/or air bubbles.
2)Spare and accessary parts of small size packed in plywood cartons.
3)With steel ropes to fix in container, anti-skid suitable for long distance shipment.
FAQ
Q1: Do You Offer Free Samples?
A1: Normally we don't offer free samples. But further solutions will be discussed respectively upon request.
Q2: Can You Supply Us Wearing Parts For The Bridge Cutting Machine?
A2: Sure, it is our duty.
Q3: How About The Delivery Time After Payment For The Order?
A3: Normally 25-45 days. It depends on the ordered models, quantity and our production duty engaged already.
Q4: What Service Can You Provide?
A4: Online technology support, engineers arranged to overseas for guiding machine installation training operation, debugging and maintenance.

---
