Universal Metal Vertical and Horizontal Turret Milling Machine X6336

Product Description

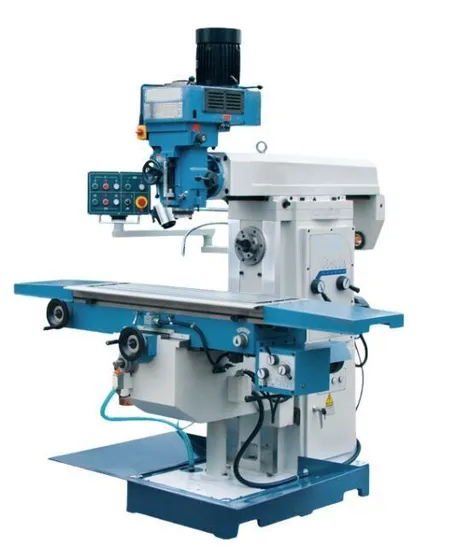

Vertical and Horizontal Turret Milling Machine X6336
Taiwan high speed milling head,high precision and high- speed range, Vertical-horizontal dual purpose, table travel large and stable, automatic feed on two axes, motorized lift on Z axis, three axes hardened.
The fuselage and the lifting platform for the square guide.
Specification:

Model No.	X6336
Item No.
Specifications
Table size	1250x360 mm
Max,travel of table	1000x300x350 mm
Spindle
Spindle table	ISO40(V) ISO50 (H)
Distance from vertical spindle to worktable	135-485mm
Distance from horizontal spindle to worktable	0-350 mm
Spindle speed range	75-3500(V) 60-1800 (H) rpm
Dimension of package
Main Motor power	4.0 kw(H) 3.7/2 KW (V)
Arm travel	500 mm
Overall dimensions	2220x1790x2360 mm
N. W/G.T	2500/2700 kg

FAQ
1.How can I choose the most suitable machines?
Please advice your technical requirements, or workpiece information or just send drawing, we can provide most suitable machine model information to you.
2.What's your main products of your company?
We specialized in all kinds of metal-working machines, such as CNC Lathe Machine, CNC Milling Machine, Vertical Machining Center, Lathe Machines, Drilling Machine, Radial Drilling Machine, Sawing Machine, Shaper machine, laser and so on.
3.Where is your factory located?
Production bases are in Canton, Jiangsu and Shandong.
4.What is your trade terms?
FOB , CFR and CIF all acceptable.
5.What's the MOQ?
1 SET.
6.Are you a manufacturer?
By collaborating of more than 10 years with selected manufacturers that possess different product advantages, integrating foreign demands, we have built out full range high quality product line which enjoy better pricing and lead time while we can execute production monitor and quality assurance, and we provide comprehensive high-quality pre-sales and after-sales services.
7.What's the Payment Terms?
T/T, 30% initial payment when order, 70% balance payment before shipment Irrevocable LC at sight.
8.How to get quotation?Place an order? How about the delivery time?
Just send us an inquiry or contact us with online service / WhatsApp advising your technical requirements or workpiece information, we will revert you shortly with our catalogue , quotation and other details you need. For standard models, lead time is around 30-60 days after payment received.
9.What service we can offer?
1).12 months warranty.
2). Free technical support online service via email, telephone, video meeting etc.
3). On-site commissioning, testing and training service.
4). Spare parts and consumable parts supply and machine repair service.
5). All of the questions will be replied within 24 hours.

---
