Nanbei Lab Electric Thermostatic Digital Vertical Vacuum Drying Oven Chamber Incubator

Product Description

Digital Lab Vertical Vacuum Drying Oven
Product Description
Summary:
Vacuum drying oven is designed specially for drying of material which is thermo-sensitive or decompounded and oxidative easily, it can be filled with inert gases, which is especially for a rapid drying of some compound material, widely applied in pharmaceuticals, electronics industry and chemical industry.
Features:
1.digital display microprocessor temperature controller and timing function ensures a precise and reliable temperature control
2.cuboid chamber maximizes the effective cubage
3.dual-layer-bullet-proof toughened glass door ensures absolutely clear observation on objects in chamber
4.Shutting extent of oven door ifs adjustable, closed-cell silicon gasket ensures a high vacuum degree in oven
5.The chamber is made of stainless steel(or wire-drawing sheet), which allows a durable service
6."D" series vacuum oven are multiple sections (up to 10 sections) intelligent programmable LCD controller
7."LC"series vacuum oven are vacuum degree LCD screen controller.

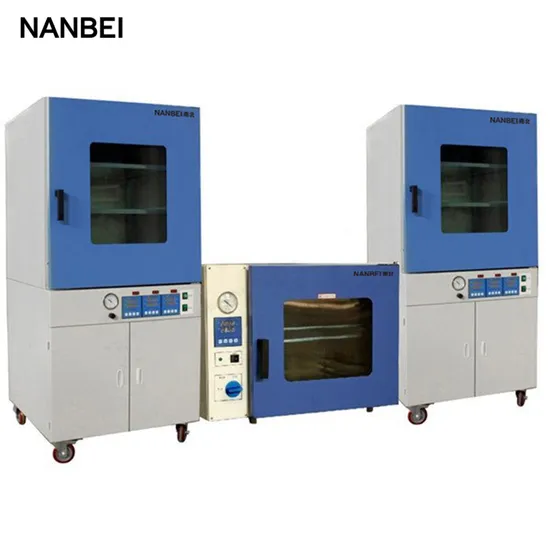

Detailed Photos

Product Parameters
Technical data:

Model	NBD-6500 NBD-6500D NBD-6500LC	NBD-6210 NBD-6210D NBD-6210LC	NBD-6090 NBD-6090D NBD-6090LC	NBD-6050 NBD-6050D NBD-6050LC NBD-6053	NBD-6051	NBD-6021	NBD-6020 NBD-6020D	NBD-6030A NBD-6030AD	NBD-6020B NBD-6030B NBD-6050B
Voltage	380v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ	220v 50HZ
Power	3600w	2200w	1400w	1450w	1450w	450w	450w	450w	350w/450w
Temp. range	+10-200ºC	+10-250ºC	+10-250ºC	+10-250ºC	+10-220ºC	+10-200ºC	+10-250ºC	+10-250ºC	+5-65ºC
Temp.resolution	0.1ºC
Constant volatility	±1ºC
Vacuum degree	<133Pa
Working temp.	5-40ºC
Inner dimension	630*810*845	560*600*640	450*450*450	415*370*345	300*300*275	300*300*275	300*300*275	300*300*300	300*300*275 320*320*300 415*370*345
Size(mm)	790*1030*1855	720*805*1680	610*660*1400	730*560*550	605*490*450	605*490*450	605*490*450	630*510*490	605*490*450 630*510*490 730*560*550
Shelves	4pcs Independent temperature control	3pcs Independent temperature control	2pcs Independent temperature control	NBD-6050 2pcs NBD-6053 3pcs	1pcs	1pcs	1pcs	1pcs	NBD-6020b:1 NBD-6030b:1 NBD-6050b:2
Working chamber material	Stainless steel(1Gr18Ni9Ti)
Timing	1-9999minutes

Note:
model 6090,6210,6500 and LC series are equiped with vacuum pump
specification test under no load condition:ambient temperature is 20C, and relative humidity is 50%
Options:
1 intelligent programmable LCD temperature controller
2 intelligent programmable temperature controller
3 vacuum pump 2XZ-4(4L/S) allocation special socket(shanghai)
4 dry filter-Jar
5 gas and liquid separator(vacuum liquid dust filter)
6 inert gas valve
7 RS485 Socket
Related Products
Click the photo to get more details:

Model	HH.CP-T HH.CP-TIN		HH.CP-01 HH.CP-01IN		HH.CP-TW HH.CP-TWIN		HH.CP-01W HH.CP-01WIN
Volume	80L		160L		80L		160L
Voltage	220v 50HZ
Heating mode	Gas condominiums				Water dwelling
Temperature range	RT+5ºC-50ºC
Temperature accuracy	±0.3ºC
Temperature resolution	0.1ºC
CO2 temperature range	0-20%(with gas)
CO2 recovery time	≤concentration values*1.2min
Humidification	Natural evaporation
Power	450w	770w		730w		1000w
Operating ambient temperature	5ºC-35ºC
Inner dimension	500*400*400	500*500*650		400*400*500		500*500*650
Size(mm)	760*530*560	770*630*810		710*540*720		805*640*870
Carrier stock	2pieces	3pieces		2pieces		3pieces

Packaging & Shipping
Company Profile

Certifications

FAQ
FAQ:
Q1: Why Choose NANBEI ?
(1).Professional manufacturer with more than 13 years experience
(2).Exported to more than 97% Countries
(3).Turnkey Solution is no problem
Q2:OEM,ODM acceptable or not?
Absolutely Yes
Q3:What's kind of Payment terms for customer choosing?
T/T ,Western Union, Money Gram , Credit Card, Paypal , L/C ...
Q4:Can we visit your factory online?
Absolutely no problem
Q5:Can online video inspection before shipment?
Absolutely no problem
Q6: what's the MOQ ? Sample order is OK?
MOQ:1 set, sample order is no problem
Q7:What's kind of shipment for customer choosing?
Usually ship by sea, by air, by international express .
We can also provide reasonable solutions according to your transportation requirements
Q8:How to ensure product quality and after-sales service?
We have CE, ISO quality certificate, and SGS authentication.
After-sale service:
Warranty : 1 year We supply free part for quality problem in warranty Long life technical support and service

---
