Single-Jet Liquid Sealed Vane Wheel Water Meter

Product Description

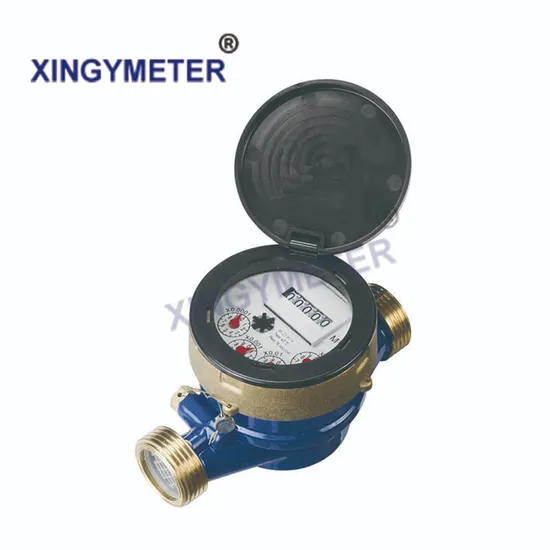

LXS-FD Single-jet Liquid Sealed Vane Wheel Water Meter
Product Images
Product Description
INDICATION
Cubic meter(m³) and U.S gallon (USG) for selecting.
WORKING CONDITIONS
WATER TEMPERATURE
≤40ºC for cold water meter
≤90ºC for hot water meter
REED SWITCH OPTION
10 liters 1pulse
Dimensions and Weights

Nominal diameter	DN	13	20	25	32
Body thread	D	G3/4B	G1B	G1¼B	G1½B
Connector thread	d	R1/2	R3/4	R1	R1¼
Body length mm	L	110/190	130	160	160
Overall length mm	L1	204/284	234	280	284
Width mm	W	87	87	87	110
Meter height mm	H	94	91	91	128.5
Working height mm	H1	164.5	164.5	164.5	210
Weight without connectors Kg		0.8/0.95	0.97	1.2	2.25
Weight with connectors Kg		0.98/1.13	1.25	1.72	3.05

"L1"is the total length when coupling gaskets without compression.
Related Products
LXSC-E1 LXUR-H1 LXH-B
LXSC-D3 LXS-F8 LXSC-D7 Why Us
FAQ
Q1: Why choose Xingyuan Meter?
A1: We are a professional manufacturer of water meters, heat meters and meters accessories.
A2: We have advanced equipment, complete production lines, professional inspectors, and strict quality control.
A3: We offer the most competitive price and satisfying service.
A4: High level quality and delivery time guaranteed.
Q2: Do you provide samples? Is it free or extra?
A: Yes, the customers have to pay the sample cost and the courier cost.
Q3: How about your delivery time?
A: Generally, 30-45 days.

---
