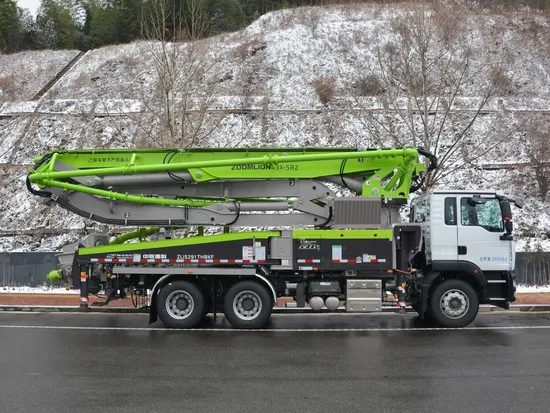

| Model | ZLJ5290THBJF 43X-5RZ | |
| pumping system | Max.theoretical output m3/h | 110/60 |
| Concrete pumping pressure MPa | 8/15 | |
| Rated working pressure MPa | 35 | |
| Pumping frequency min-1 | 25/14 | |
| Hopper volume L | 550 | |
| Loading height mm | 1540 | |
| Hydraulic system type | Open type | |
| Distribution valve form | S valve | |
| Cylinder bore × stroke mm | Φ150×1650 | |
| Concrete bore × stroke mm | Φ230×1650 | |
| Hydraulic oil cooling | air cooling | |
| Recommended slump cm | 12~23 | |
| Maximum aggregate size mm | 40 | |
| Boom | structure type | 43X-5RZ |
| Maximum reach height m | 42.3 | |
| Maximum reach radius m | 37.65 | |
| Maximum reach depth m | 29.68 | |
| Rotation angle | 360° | |
| Number of arm sections | 5 | |
| Arm length mm | 8350/6720/6700/8030/8500 | |
| Span angle | 90°/180°/180°/240°/195° | |
| Delivery pipe diameter mm | 125 | |
| End hose length mm | 3000 | |
| Minimum opening height of boom mm | 9790 | |
| Outrigger span (front×rear×longitudinal) mm | 7980×7600×7500 | |
| Chassis and vehicle | Chassis model | CA5300THBP1K2T2BE6A81 |
| Wheelbase mm | 4300+1350 | |
| Engine model | WP8.350E61 | |
| Engine rated power kW/(r/min) | 257/2100 | |
| Engine maximum torque N.m/(r/min) | 1400/(1200~1600) | |
| Engine displacement cc | 7700 | |
| Fuel tank volume L | 300 | |
| Exhaust emission standards | National Three | |
| Vehicle weight kg | 29000 | |
| Overall vehicle dimensions (length × width × height) mm | 10975×2530×3960 | |
