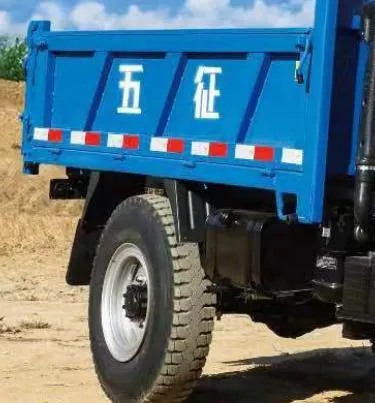

WUZHENG New Brand Disel 3WD Tricycle

Product Description

Product Description
WUZHENG Disel 3-WD Tricycle shield Main Features
1.The wind deflector showcases a cutting-edge design philosophy,relized through advanced design technigues including UG modeling and CAE process analysisAl parts are cast in secuence, with high-precision pneumatic welding workstations ensuring welds that meet the rigorous design requirements, securing boththe aesthetic appeal and the structural quality of the product from the very start of the design process.
2.The instrument panel assembly fetures an expansive application of a large silver cover with bright trims, giving the central control area a ful and upscaleappearance. lt includes an integrated instrument cluster. For the headlamp assembly, a mainstream automotive lens structure has been adopted, with theadded benefit of eight popular industry-tandard LED lights near the ow beam and turn signals, providing energy eficiency, environmental friendliness, andlong service life.The lights shimmer with crystal clarity, making for a breathtaking display that eads the trend for tricycle headlamps.
3.A deluxe adiustable seat that fuly embraces ergonomic design ofes a breakthrough in visual appeal and practical application beyond the imitations of traditional semi-enclosed tricycle seating, and comes equipped with armrests and crafted from upscale fabrics to enhance its elegance.
4.The engine is fuel-efficient, eco-friendlv, with strong performance and reliable quality.
5. The tricycle is fited with a heav-duty rear axle with ten gears and uses strong 90 leaf springs, assuring a reliable carryjing capacity and trustworthiness for theuser.
6.The tricycle is equipped with a fuel gauge, an ammeter, a voltmeter, and a mobile phone charging port to meet user needs to the greatest extent. Product Parameters

Model	WKD5J301
Main dimensions	Overrall Dimensions (L*H*M)mm	4515*1700*1770
	Dimensions of the cargo body (L*H*M) mm	2800*1700*600
	Wheel Base (mm)	2995
	Wheel Track(front/rear) mm	1420
Overall performance	Max. Speed (km/h)	50
	Max. Slope of Climb (%)	15
	Min.Turning Radius (m)	4.00
Steering gear type	Recirculating Ball/Electrical Power Steering
Engine	Engine Type	CFF33XQ-36-24-G4
	Displacement(L)	1.861
	Rated Horsepower(HP)	26
Service Brake and boosting type	Air-Cut Bake
wheels and tyre size	Front Wheel	65016
	Rear Wheel	7.50-16
wheels and tyre size	Rated Voltage	24V
	Battery	75Ah*2

Packaging &shipping
Typically, our three wheeled tricycles take SKD / CKD and carton packaging as shown . If you have any special requirements, welcome to inform in advance.Our services:
Company Profile Wuzheng Group is one of the key players of machinery engineering in China, originated in 1961. It set up agricultural vehicle business in 1984 and in 2000 was restructured as private ownership.
Nowadays, a diversified industrial pattern of agricultural vehicles, automobiles, agricultural equipment, sanitation equipment and modern agriculture, boosts a coordinated development. 12,000 employees and total assets of 14 billion yuan ground it in reputation and honorable tittles of national, provincial, municipal and industrial levels. Diversified Industrial Pattern
Wuzheng is committed to innovation-driven industry and product upgrades. 1 Wuzheng Tricycles -Wealth Creator
Since 2010, Multiple functions such as transportation, faming, mining, trading and etc. forge a fame of No.1 sales in agricultural vehicle industry and No.1 brand in the nationwide.
In addition, 3MX, developed by international R&D team, dominates the industry with subversive styling, invention patents, 30 utility model patents, 12 appearance patents, 86 product innovations than in previous 40 years.
2 Feidi Motors- Light Truck Navigator
In 2005, Wuzheng set foot in automobile industry, having cultivated Feidi W, Feidi Q, Feidi WAW, Feidi DITO series
In 2016-2017, DITO family(logistic model, race model, double-row model, medium truck, RV, new-energy model) was launched in succession to cater for diversified market demands.
3 Agricultural Equipment- Booster for Agricultural Modernization
In 2009, Wuzheng renovated it position in senior market after M&A, providing products with high added values and strong competitiveness. RENOMAN of 180~260hp, silage, corn, wheat, and peanut harvesters, tobacco machinery and etc, enrich the product lineup.
4 Sanitation Equipment- Industry Pioneer
On the occasion of sanitation integration and rural reconstruction, Wuzheng has been devoted to providing solution package from collection, disposal to transportation such as hooking-arm model, dumping model, sprinkler, sweeper, waste transfer station and etc.
5 Modern Farming- Participant of international agricultural & livestock
Certification
Advanced R & D Analysis and Tests
As a"Corporate technical center", "Industrial design center" "CNAS center"identified by the nation and academician and postdoctoral workstation, Wuzheng undertakes and is engaged in 40+ nationwide technological supporting projects, 630 invention patents and utility model patents and formulation of 60 national and industrial standards and etc. Our Advantages
Automation and Intelligent Manufacturing
Modern Management
Wuzheng lays importance onto comprehensive information management such as SAP system, 6σ & lean management methodology, IATF16949 system and so on, in achieving so, Wuzheng recruits HP, Deloitte, Roland Berger consulting of theory, methodologies and tools.
Global Distribution Networks
Up so now, Wuzheng has established 1500+ sales and service channels and 8million+ loyal customers in the worldwide. By 2019, Wuzheng enables a brand value of 5.663 billion yuan. Wuzheng has paved distribution network in 60+ countries, along with the "Belt and Road", Wuzheng will speed up the pace of "Go Global".
