Meetyou Machinery China Plastic Film Pelletizer Multifunctional Acs-H800/120 Plastic Granules Making Line PVC Recycling Pelletizing Machine/Plastic Granulator

Product Description

Zhangjiagang Meetyou Machinery Co., Ltd.

Factory Add: Leyu Economical Park, Suzhou, Jiangsu, China
Zhangjiagang MEETYOU Machinery Co., Ltd is located in the national civilized city---Zhangjiagang, which belongs to Suzhou city of Jiangsu Province; It′ S near the golden waterway of the Yangtze River, only 2-3 hours from Shanghai deep-water port and Pudong airport, and 1 hour from Wuxi city and Changzhou city by car.
MEETYOU Machinery is a leading supplier of plastic extrusion and recycling equipment.
We mainly offer kinds of PVC/PP/PE/ABS/PC extrusion lines for pipes, profiles, granules, sheets/boards, roof tiles, and recycling machines for pipes, profiles, film, woven bags, bottles, tires, net, etc.
Besides, we also offer the assistant machines, like Mixer, Crusher, Pulverizer, pipe Belling Machine, Auto Loader, Hopper Dryer, Water Chiller, words Printer, etc.
Product Description

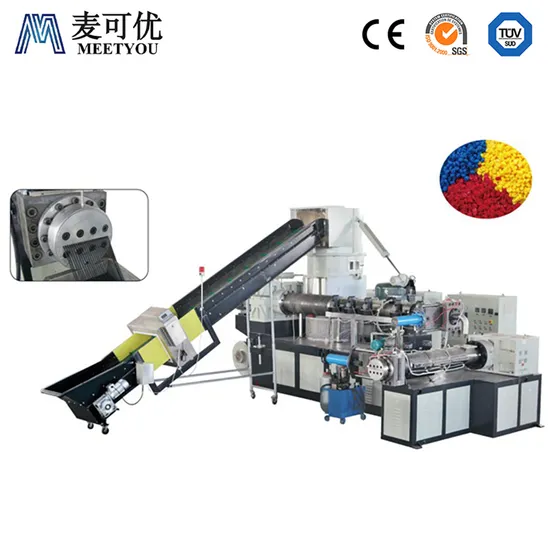

Multifunctional ACS-H800/120 Plastic Granules Making Line PVC Recycling Pelletizing Machine The ACS series compacting and the pelletizing system combine function of crushing, compacting, plasticization, and pelletizing in one step. applied in the plastics recycling and pelletizing process. ACS system is a reliable and efficient solution for plastics films, raffias, filaments, bags, woven bags, and foaming materials re-pelletizing.
Final productions produced by ACS system are in the form of pellets/ granules, which can be directly put into the production line for film blowing, pipe extrusion, plastics injection, etc.
Product Parameters
MEETYOU MACHINERY China Plastic Film Pelletizer Multifunctional ACS-H800/120 Plastic Granules Making Line PVC Recycling Pelletizing Machine/Plastic Granulator

SPECIFICATIONS
Machine Model	ACS
Target Recycled Material	HDPE, LDPE, PP, BOPP, CPP, OPP, PE, PC, PS, PU, ABS
Final Product Shape	Particles
System composition	Belt Conveyor, Cutting Compactor, Single Screw Extruder, Filtration, Pelletizer, Water Cooling Device, Dehydration Section, Conveyor Fan, Product Silo.
Output Range	150kg/h-1200kg/h
Feeding Device	Belt Conveyor (Standard), Roll Hauling off device (Optional)
Compactor Volume	300L-1400L
Diameter of screw	80mm-180mm (Standard)
Material of screw	38CrMoAlA (SACM-645), Bimetal (Optional)
L/D of screw	31/1, 32/1, 34/1, 36/1 (According to the characteristics of recycling)
Heater of barrel	A ceramic heater or Far-infrared heater
Cooling of Barrel	Air cooling of fans through blowers
Vacuum deashing exhaust	Two Double-zone vacuum degassing systems (Standard)
Pelletizing type	Water-ring pelletizing/ water-strands pelletizing/ Under-water pelletizing
Voltage Standard	According to the Voltage of the Customer's Location
Optional device	Metal detector, Roll hauling off device, Masterbatch, and additives feeder
Warranty	13 months from the date of bill of lading
Technical services	project design, factory construction, installation, and recommendations, commissioning

Model	Screw Diameter (mm)	L/D	Extruder motor (kW)	Output capacity (kg/h)
ACS-H300/80	80	36	AC 55	160-220
ACS-H500/100	100	36	AC 110	300-380
ACS-H800/120	120	36	AC 132	450-480
ACS-H1000/140	140	36	AC 185	500-650
ACS-H1200/160	160	36	AC 250	800-1000
ACS-H1400/180	180	36	AC 315	1000-1200

Detailed Photos
FAQ
YOU ARE WELCOME TO OUR FACTORY AT ANY TIME
- MEETYOU MECHINERY is original manufacturer.
- If you interested in our products and we can fulfill your request , you may pay a visit to MEETYOU MACHINERY Factory.
- The meaning of visiting supplier, since seeing is believing, MEETYOU MACHINERY with its own manufacture and developed& research team, we can send you engineers and make sure the high-efficiency after-sales service.
SEE MEETYOU MACHINE HOW TO ENSURE THE QUALITY
- In order to ensure the accuracy of each part, we are equipped with a variety of professional processing equipment and we have accumulated professional processing methods over the past years.
- Each component before assembly needs strict control by inspecting personnel.
- Each assembly is in charge of a master who has working experience for more than 15 years
- After all the equipment is completed, we will connect all the machines and run the full production line for at least 12 hours to ensure the stable running in the customers' factory
THE AFTER-SALE SERVICE OF MEETYOU MACHINERY
- After finishing the production, we will debug the production line, take photos, and videos and send them to customers via mail or instant tools.
- After the commissioning, we will package the equipment by the standard export package for shipment.
- According to the customer's request, we can arrange our engineers to customers' factories to do the installation and training.
- Engineers, sales managers, and after-sales service managers will form an after-sales team, online and offline, to follow the customers' project.

---
