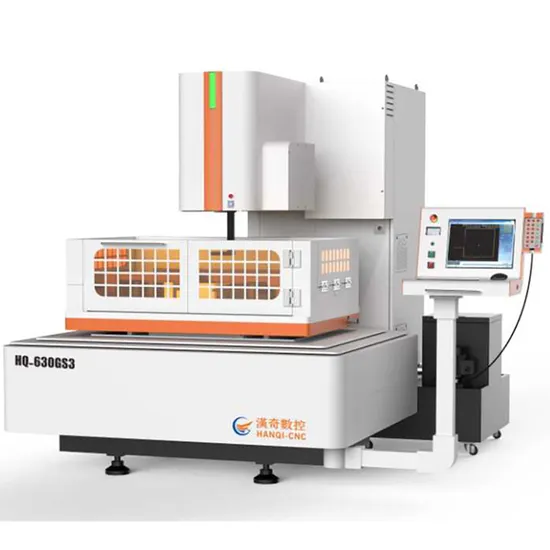

CNC Wedm (servo motor) Hq-630GS3

Product Description

Servo Motor Medium-SPEED WIRE EDM
GS3 series

Servo Motor Medium-SPEED WIRE EDM
HQ-630GS3
*Ultra-low molybdenum wire loss of 150000 mm ² No wire loss
*Extra income for you (cutting condition: 9000mm/h water-based cutting fluid; steel workpiece height: 60mm)
*Maximum cutting efficiency: exceeding 300mm ²/ Above min
*Best surface roughness: Ras0.6um
Product Parameters

		HQ-400GS3	HQ-500GS3	HQ-630GS3
Machine tool dimensions	Mm	(1280 + 613) * 1683 * 2100	(1460 + 779) * 1930 * 2100	2050 * 1550 * 2000
Cabinet size	Mm	All in one	All in one	1000 * 550 * 1980
Weight of machine tool	KG	2000	2500	3000
Table travel	Mm	400 * 320 * 260	500 * 400 * 260	630 * 500 * 260
U, V-axis stroke	Mm	± 25	± 25	± 25
Maximum cutting thickness	Mm	300	300	300
Maximum machining taper (angle/thickness)	°/mm	± 6 °/80	± 6 °/80	± 6 °/80
Electrode wire diameter range	Mm	Φ0.12-0.2	Φ0.12-0.2	Φ0.12-0.2
Machine tool power	Kw	≤2.3	≤2.8	≤3
Work area
Size of worktable	Mm	660 * 450	720 by 520	880 * 600
Working fluid tank	Mm	980 * 550	1180 by 710	1310 * 795
Table load-bearing weight	KG	400	500	700
Working fluid tank
Filtration accuracy	Μm		10	10
Maximum volume of the tank	L	130	130	130
Pulse power
Drive mode (x/Y)		Precision Ball Screw	Precision Ball Screw	Precision Ball Screw
Drive mode (U/V)		AC servo	AC servo	AC servo
Surface roughness	Μm	Ra ≤0.5	RA ≤0.7	RA ≤0.8
Maximum cutting speed	Mm2/min	≥220	≥220	≥220
Speed of silk handling		Multilevel frequency control	Multilevel frequency control	Multilevel frequency control
CNC system
Data Systems		HQWNC or AUTO CUT	HQWNC or AUTO CUT	HQWNC or AUTO CUT
Hardware configuration		Fan-free industrial computers, 32G solid-state drives, standard PC keyboards	Fan-free industrial computers, 32G solid-state drives, standard PC keyboards	Fan-free industrial computers, 32G solid-state drives, standard PC keyboards
Communication interface		USB, LAN, RS232	USB, LAN, RS232	USB, LAN, RS232
Control the number of axes		4-axis linkage guide nozzle lifting	4-axis linkage guide nozzle lifting	4-axis linkage guide nozzle lifting
Language interface		Chinese, English, Russian, Japanese	Chinese, English, Russian, Japanese	Chinese, English, Russian, Japanese
Units of size		Metric system, English system	Metric system, English system	Metric system, English system
Manual control		Standard configuration	Standard configuration	Standard configuration
Power source		380V ± 10% , 50/60HZ, 2 kva	380V ± 10% , 50/60HZ, 2 kva	380V ± 10% , 50/60HZ, 2 kva
Environmental conditions		15-30 ° C (temperature)/40-80% (humidity)	15-30 ° C (temperature)/40-80% (humidity)	15-30 ° C (temperature)/40-80% (humidity)

Software

Quality Control
Detailed Photos
Sample Parts
Certifications
Company Profile
1) The chairman has worked at Hanchuan Machine Tool Factory in China (1986-2005), focusing on the field of electrical machining for nearly 40 years;
2) In 2005 The company was established , with its factory located in Suzhou High tech Zone, China, covering an area of 20000 meters ²;
3) It is a high-tech enterprise in Jiangsu Province and a specialized, refined, and innovative enterprise in Jiangsu Province;
4) With over 80 employees and nearly 20 research and development personnel, it is a research and development production oriented enterprise;
5) Implement the ISO9001 quality management system and use the Carl Zeiss three coordinate system for precision testing of machine tool components;
6)In 2016, we engaged in product cooperation with Beijing Agie Charmilles Industrial Electronics Co., Ltd;
7)In 2017,we obtained titles such as Jiangsu High tech Enterprise and Jiangsu Private Science and Technology Enterprise;
8)In 2018,Introducing internationally leading production and manufacturing processes, stricter quality management systems, and standardized production processes implemented by Swiss enterprises;
9)In 2020,we developed Fully CNC Lifting Liquid Tank Mirror effect EDM,named HQ-U40,the machine which can achieve the optimal surface roughness up to 0.047um;
10)In 2022,we moved into the new a new address located in the high-tech zone and received the title of specialized, refined, and innovative enterprise in Jiangsu Province;

---
