High Precision Middle Horizontal Flat Bed CNC Lathe CAK6150 CAK6161 CAK6166

Product Description

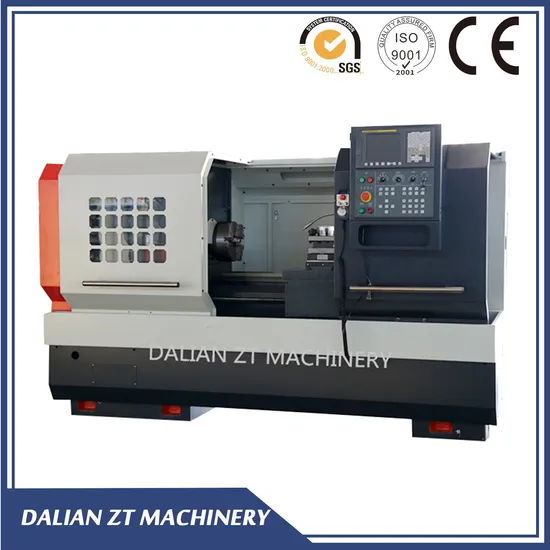

Flat Bed CNC Lathe CAK6140/CAK6150/CAK6161/CAK6166
CAK series of CNC lathe is economic and practical type machine with reliable quality. This kind of machine is widely used for internal and external turning, tapering, circular arc, thread, boring, reaming of shaft and disc type workpiece. It can also realize non-circular curve machining.
The lathe 400mm width of bed, ф50mm Z axis ball screw, and geared headstock are very strong for heavy cutting, which make the machine very productivity in cutting grey iron castings, and steel components.
For model CAK6150C/CKA6166C, spindle bore 105mm is available.
Strong features:

ф50mm Z axis ball screw

7.5KW Main Motor with 3 Shift Gear Box of Headstock for Heavy Cutting at Low Speed Range

Main Specifications:

Specifications		CAK6140	CAK6150		CAK6161	CAK6166
Max .Swing over bed		400mm	500mm		610mm	660mm
Max. Work piece Length		1000/1500/2000mm
Spindle taper		MT6/ model B:(Φ90 1:20)/ model C: Φ113 1:20
Spindle Nose		C6 / (D8-model B/C)
Thru-hole of spindle		Φ52mm/ Φ80(model B)/ Φ105(model C)
Spindle speeds		100-2000rpm(variable speed without gear)/ 21-1500rpm (variable speed in 3 steps with automatic gear shift)
Tailstock center sleeve travel		150mm
Tailstock center sleeve taper		MT5
Repeatability error		0.01mm
X/Z rapid traverse		4/6m/min
Spindle motor		7.5kw
Overall dimensions LxWxH	1000	2750x1550x1700mm			2750x1550x1900mm
	1500	3250×1550×1700mm			3250×1550×1900mm
	2000	3750×1550×1700mm			3750×1550×1900mm
G.W. /N.W. Kgs	1000	2900/2200		3000/2240	3000/2400	3050/2450
	1500	3150/2300		3200/2350	3200/2600	3250/2650
	2000	3350/2700		3400/2740	3400/2830	3450/2880

Standard Equipment

Manual 3-jaw chuck

Coolant system

Automatic lubricating system

Ballscrew for X/Z axis

4-position electrical turret

Manual tailstock

Work light

Tool box with tools

Semi-closed machine cover (two-doors)

Operation manual

Factory Photos:
FAQ:
1. How can I choose the most suitable machines ?
A: You can choose the exact model by yourself. Or you can tell us your specifications, to let us choose the best model for you, too.
You can also send us the product drawing, and we will choose the most suitable machines for you.
.
2. When do you deliver?
A: It depends on the machine and model you choose. Mostly 1.5 months - 3 months. All machines are brand new, made according to your order. Occasionally there will be a few machines available from stock. You can send us a message or mail to check exact delivery time.

3. Is machine tested ?
A: The accuracy, noisy will be tested according to China GB standard.

4. What is your trade terms?
A : FOB, CFR and CIF all acceptable.

5. What's the Payment Terms ?
A : T/T 30% down payment when order ,70% balance payment before shipment ;
Irrevocable L/C at sight also acceptable but it will subject additional bank fee.

6. Do you accept cash or L/C?
A: We accept T/T or L/C, all through banking system. We do not accept cash, 'cause we are an official registered company that all payment must go through official bank account.
7. What's the MOQ?
A: 1 set (Only some low cost machines will be more than 1 set)
8. How is the warranty?
A: 12 months
9. If I have a problem setting up/ getting it running problem, will you be available by email to assist in solving the problem.
A: Video technical support, online service, we can answer you in 24 hours.

---
