Product Description
Product Description

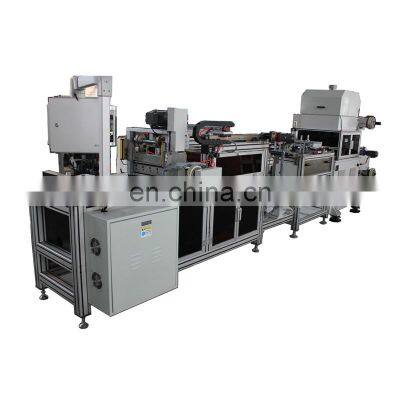

Adhesive roll tape hydraulic die cutting machine with PC sheet laminating and sheet cutting function Functions1.This kind of die cutting machine is used for die cutting rubber,foam,plastic,paper board,aluminum foil,cooper foil,PET,protective film,mylar,gaskets,silicon tape and so on,through die cut or kiss die cut. 2.adhesive roll tape and liner unwinding - laminating - kiss die cutting - punching - liner rewinding - tape laminate with the PC sheet - sheet cutting - box to store the finished products,all the functions are controlled by the PLC. Specifications ItemPressure (Tons) Cutting worktable(mm) Max stroke Laminating precision Power(kw) Voltage DP-400DC 18 400*500 100mm ±0.5 9 380V 50HZ Product Overviews Detailed Images1.Die cutting components:Unwinding:3 inch inflatable unwinding shaft,unwinding diameter 500MM, magnetic powder brake to control the tension. by adjust the upper unwind handwheel,the laminating position of the up material can be left and right adjusted slightly. Laminating:Servo motor pull the laminating roller,high precision,the cylinder controls the upper roller up and down. Die cutting:Die cutting using 18T hydraulic cylinder,the die-cutting depth is controlled by 200W-120 reducer motor and encoder, which makes the pressing depth more accurate and convenient to operate,the die-cutting part is equipped with a safety cover,the machine does not operate if the cover door is open or not tightly secured. Oil tank,hydraulic system:The machine uses 46# anti-wear hydraulic oil, the system uses 5.6KW motor + oil pump, solenoid valve control. assemble and unassemble the wooden knife mold by the clamping cylinder. 2.Punching device: 3.Material storage,laminating,sheet cutting: Waste rewind shaft:3 inch inflatable rewind shaft with rewinding diameter of 350MM,the rewinding shaft is driven by a motor and magnetic powder clutch. The laminating uses servo motor to drive the sliding module as the power,Move the laminating roller left and right to laminate the products,high precision.The laminating roller is powered by a cylinder to up and down. PC sheet storage lifting mechanism and finished product storage lifting mechanism.The lifting uses servo motor as the power, gear, rack driveHigh precision,accurate positioning,rising and falling datas can be set through the man-machine interface. Sheet cutting:The cutter mechanism uses 200w-10 ratio motor to drive the eccentric driving wheel through the chain. The pulling rubber roller are driven by 180w-5 ratio of motor + dual-axis clutch.The tension is adjusted by clutch and controlled by ammeter.The cutter mechanism can be adjusted left and right by adjusting the handwheel. 4.operation panel and touch screen control: SIEMENS driver,other brand is optionalPackaging CE certificate Related ProductsClick below picture to get more details about our other hydraulic press for self-adhesive material,foam,gasket,PVC,film,Mylar,etc.
>>
