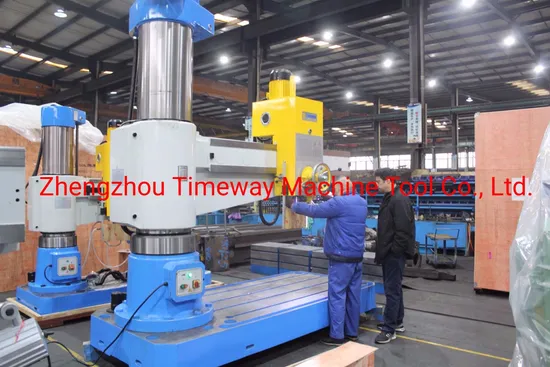

Hydraulic Radial Drilling Machine (RD series)

Product Description

Hydraulic Radial Arm Drilling Machine (RD series)
PART 1---Product Description
Features: 1. The radial drilling machine is new series with diversified fuctions of product which has
been designed and accomplished referring to international standard ISO in the recent
years.
2. In this machine, hydraulic preselection speed and feed change mechanisms are adopted,
the spindle head, radial arm and column are clamped by hydraulic clamping mechanisms.
3. The forward, reverse, stop(braking), as well as the setting of spindle in neutral position
are all controlled by a single lever, the machine has characteristics features of perfect
performance, safe, reliable and easy operation, convenient maintenance, high-accuracy,
ample rigidity and long service long.
4. It is used for drilling, counter boring, spot facing, reaming, tapping and boring, widely used
in every department of mechaninal machining.
Parameter:

Model	RD310/RD410	RD416	RD516	RD520
Max.drilling capacity(mm)	32/40	40	50	50
Distance spindle axis to column	300-1000	350-1600	350-1600	350-2000
DistancEe of column(mm)	240	350	350	350
Spindle taper	MT4	MT4	MT5	MT5
Spindle travel	280	315	315	315
Spindle speeds range(r/min)	32-2500	25-2000	254-2000	25-2000
Spindle speeds steps	16	16	16	16
Range of spindle feeds	0.10-1.25	0.04-3.2	0.04-3.2	0.04-3.2
Spindle feeds steps	8	16	16	16
Max.distance spndle nose to	220-1000	350-1250	320-1220	320-1220
working surface of base(mm)
Dimension of worktable(mm)	600×450×450	630×500×500	630×500×500	630×550×500
Dimension of base(mm)	1710×800×160	2400×1000×200	2400×1000×200	2400×1000×200
Overall size(mm)	1760×800×2050	2500×1060×2650	2500×1060×2650	2900×1060×2650
Power of main motor	2.2	3	4	4
G.W/N.W(kg)	2100/1600	4500/3500	4300/2500	4350/3550
Packing dimension(cm)	187×97×217	270×112×258	270×112×258	320×112×258

Model	RD620	RD825	RD1030	RD1240
Max.drilling capacity(mm)	63	80	100	125
Distance spindle axis to column	450-2050	500-2500	570-3150	600-4000
DistancEe of column(mm)	450	550
Spindle taper	MT5	MT6	MT6	Metric80
Spindle travel	400	450	500	560
Spindle speeds range(r/min)	25-1600	16-1250	8-1000	6.3-800
Spindle speeds steps	16	16	16	16
Range of spindle feeds	0.04-3.2	0.04-3.2	0.06-3.2	0.06-3.2
Spindle feeds steps	16	16	16	16
Max.distance spndle nose to	400-1600	550-2000	750-2500	750-2500
working surface of base(mm)
Dimension of worktable(mm)	960×630×500	1000×800×560	1250×800×560	1250×800×560
Dimension of base(mm)	2900×1250×250	3530×1400×300
Overall size(mm)	3110×1250×3150	3730×1400×3790	4780×1630×4600	5910×2000×5120
Power of main motor	5.5	7.5	15	18.5
G.W/N.W(kg)	8000/7000	15000/11000	20000	28500

PART 2 ---Our Service
1. Free replacing parts available in the warranty period.
Cost price replacing parts available beyond the warranty period.
2. Quick action and reply for the technical questions at any time in the whole life of the
machine.
3. Overseas after service center available in some region.
4. Engineer overseas service available on the requirement of customer
(relative cost born by customer).

PART 3---Company information:
"TIMEWAY MACHINE" is a registered Chinese business business located in Zhengzhou city, in the center of China, and has been opearting in the machinery industry for many years.

Our factory is the joint-stock enterprise, founded in 1946, has 50 years of machine tool manufacturing history.Occupies more than 500acres, built a foundary, machining, heat treatment, assembly, quality inspection, painting, logistics and other advanced production lines.

Our product mainly cover lathes, Milling, Drilling, Gringding, Sawing, Shaping/Slotting and related accessories &tools, etc.
