Marine Water Fire Monitor Fire Monitor

Product Description

Marine Water Fire Monitor Fire Monitor
Our Series Fire-fighting monitor,Automatic tracking and Positioning jet fire-fighting devices and fire-fighting robots fully reflect our company's technological innovation ability. The products are exported to foreign countries and widely used in large space fire-fighting systems, petrochemical fire-fighting, wharf fire-fighting, ship fire-fighting, vehicle-mounted fire-fighting guns, life-saving, rescue equipment, precision equipment fire-fighting and other fields. They are few in China. Professional fire-fighting gun manufacturer with R&D capability and export capability.
1.Advantages:
a. Concentrated jet flow and long range.
b. Large action area and multi-function.
c.Easy to operate and the barrel can either rotate or fasten.
d.Can be equipped on all kinds of fire trucks, fire boats, high platforms, fixed monitor towers and fire pipelines.
2.Working Principle:
The PSKD series worm drive foam/water dual fire monitor also consists of base, shell body, nozzle, barrel and horizontal swing mechanism. What differs is that this model adjusts angles by worm drive group. Foam solution flows into shell from base and was atomized when it pass the nozzle. The monitor inhales air to make the foam solution become foams and shoot out from barrel. Operators can adjust its elevation and horizontal angle while using.
3.Technical Parameters:
We make available customized design for our clients special request.
Application: Boat,Fire Fighting Truck,Fire Robot,Anti-riot Water Cannon Vehicle

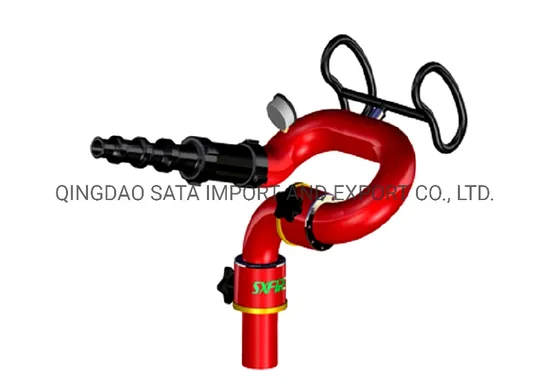

4.Picture of component
5.Specification:
Type: SX-SM-DG
Flow Range: 10-80L/S Deck gun, Adjustable
Working Pressure: 10 bar
Max Reach @ Max Flow: 80M
Range of motion: -90°~+90° Vertical , 360° Rotation
Max fog angle: 0°
Horizontal Control: Lever Action Rotational Lock
Material (body):304 stainless steel
Material (Gear):Bronze
Material (nozzle):Aluminum .
Material (hand-wheel):Stainless steel
Pump requirement for minimum performance: 10L/S@ 6 bar
Pipe dimensions for installation: 4 Inch
connections: DN100 flange
Paint: Red paint

---
