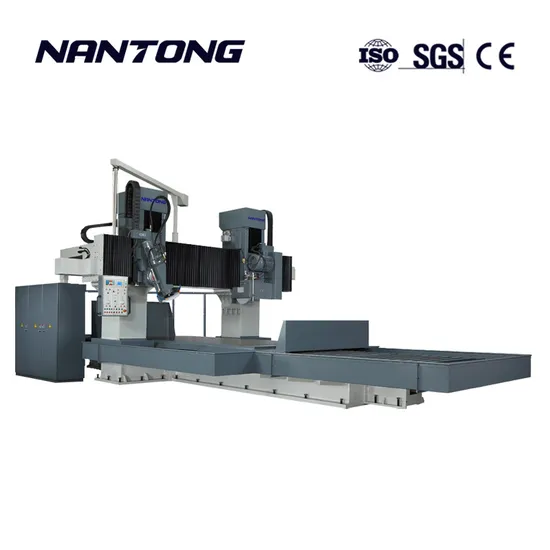

Nantong Fixed Beam Gantry CNC Milling Machine for Metal

Product Description

Machine Parameters

Model	Unit	SKX2016	SKX2500	SKX3020	SKX4025
Travel
X axis	mm	2,200	2,700	3,200	4,200
Y axis	mm	1,600 / 2,000/2500/3000
Z axis	mm	800(1,000-opt.)
Distance from spindle nose to table	mm	150 - 950(150 / 1,150-opt.)
Distance between two column	mm	1,700 / 2,100/2600
Working table
Table Length	mm	2,000	2,500	3,000	4,000
Table Width	mm	1,600 / 2,000
Table Load	kg	6,000	7,000	9,000	10,000
T- Slot (Width x Number x Pitch)	mm	22x7x180 / 22x9x180
Spindle
Spindle Taper	-	BT-50 / ISO-50 / CAT-50
Spindle Speed	rpm	3,000(6,000-opt.)
Spindle motor(cont./30 minutes rated)	kw	18.5 / 22 (22/26-opt.)
Feed
Rapid Traverse(X/Y/Z)	m/min	12 / 12 / 15			10 / 12 / 15
Cutting feedrate	mm/min	7,000
Accuracy
Positioning Accuracy	mm	±0.005 / 300 ; ±0.015 / Full travel
	mm	P0.03		P0.035
Repeatability	mm	±0.003
	mm	0.025		0.028
ATC
Tool magazine capacity	pcs	32 (24/40/60-opt.)
Max. tool size (full pocket/next pockets empty)	mm	Ø125/245
Max. tool length	mm	350
Max. tool weight	kg	20
Others
Power required	kva	65
Pneumatic input pressure	kg/cm2	6.5
Machine net weight	tons	20 / 22	22 / 24	24 / 26	28 / 30
Floor space (LxWxH)	m	8.5x5.1(5.5)x4.7	10.5x5.1(5.5)x4.7	12.5x5.1(5.5)x4.7	15.2x5.1(5.5)x4.7

Machine Configuration

Automatic lubrication system

Spindle oil cooler

Air blast through spindle

Manual Pulse Generator

Working lamp

3-color alarm lamp

RS-232 interface

Heat exchanger for electrical cabinet

Water gun and air gun interface

Cutting coolant system

Twin auger chip removal system

Belt type chip conveyor with cart

X axis Heidenhain Linear Scale

Sub-table

3 axes manual pulse generator for mold processing

Coolant through spindle at 20/40/70 bar

Coolant through tool holder interface

Air conditioner for electrical cabinet

Transformer

Oil skimmer

Oil mist collector

Company Introduction
NANTONG YIJI MACHINERY CO., LTD
Founded in 1988, Nantong YIJI Machinery Co., Ltd. has established itself as a premier manufacturer specializing in move column CNC machine centers, floor type boring machines, CNC gantry milling machines, automatic solutions, and professional machine tools. Our core business philosophy—'Quality is essence, excellence, full participation'—drives our relentless pursuit of perfection and the enhancement of the 'YIJI' brand. Distinguished by specialized design, mature craftsmanship, rigorous QC management, swift integrated solutions, and exemplary after-sales service, we have earned the trust of a vast clientele. Our expansive market share extends across 30 countries in Europe, America, and Southeast Asia, where our diverse product range enjoys a stellar reputation. As a company, we hold import/export rights, export product licenses, and certifications including CE and ISO9001.
Innovation knows no bounds and techniques shape the future. We are proud to offer you our advanced technology, high-quality machines, and unmatched service.
Our Service
Warranty & After-sale Service
1. 24-hour technical support via E-mail or telephone.
2. Provision of extra machine accessories and customized programming services tailored to your drawings. Special designs are welcome.
3. All our products come with a 12-month warranty.
4. Damage caused by human error is not covered.
5. We provide materials and technical support to assist our customers in resolving issues.
We will cover the delivery charges for repairs, returns, or replacements.
We warmly welcome your inquiries!

---
