Concrete Frame Vibrating Truss Screed Gys-200 with Fast Connect System

Product Description

Concrete Frame Vibrating Truss Screed GYS-200 With Fast Connect System
Features and Advantages: 1.Using advanced American technology,it's the most sophisticated truss screed,with better working results and higher efficiency than traditional truss screeds,just 1/3 of their weight
2.Material is zinc-magnesium alloy,by special processing,hardness is several times of general aluminum alloy.It's wear-resistant and light
3.Minimum leveling span is 2.54m,maximum is 12m.
4.Slight leveling tolerance(<3mm).
5.Long service life:150000-200000sq.m.
6.Maximum vibration depth is 210mm,meeting the needs of different construction conditions.
7.Strong triangle frame is integrally casted for strong structure.
8.High quality bearings,Gates belt and centrifugal clutch ensure machine's longer service life.
9.It is widely used in airport,highway,bridge and tunnel,mining plant(wear-resisting floor,super flat ground) construction.
10.Eccentric shaft connecting method,rubber soft connection instead of high noise mechanical connection,easy for quick assembly.
11.Lightweight, high strength aluminum truss screed
Specification

Model	GYS-200
Engine Type	Honda GX270
Power Kw(hp)	6.6(9.0)
Drive	Manual Winches
Max width m(ft)	12(39)
Max Vibration Thickness mm(in)	200(8)
Section Width m(ft)	2.54(8.3)/1.32(4.3)/0.71(2.3)

Application Areas:
Truss screeds are ideal for a range of applications, including concrete floors, landscaping, road construction/maintenance, rental and civil engineering. It's an excellent solution for tunnels, roads, large depots, exhibition halls and more.
MACHINERY OPERATION PROCESSING
ASSEMBLING
PACKAGE

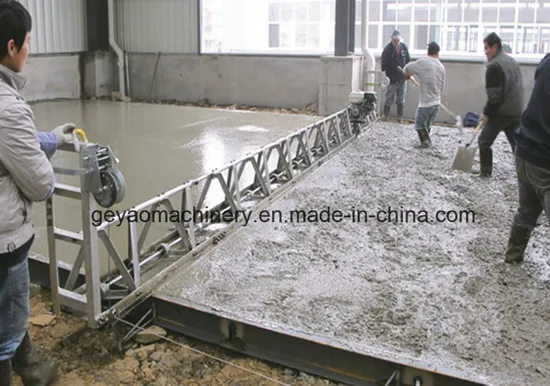

WORKING PERFORMANCE

---
