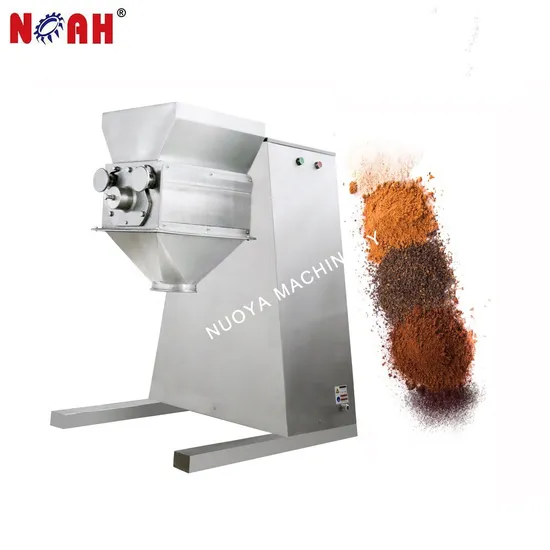

Yk Series Oscillating Granulator

Product Description

Yk Series Oscillating Granulator Applications:
The Scilating Granulator is used for forming the required granules from moist power material,or for crushing dried block stock into granulates in required size.
Features:
The rotary speed of the rotor can be adjusted during operation and the sieve can be removed and remounted easily; its tension also can be adjustable.
The driving mechanism is totally enclosed in the machine body and its lubrication system improves the lifetime of the mechanical components.
Main technical specifications:

Type	YK60	YK90	YK160
Dia. of rotor(mm)	60	90	160
Effective length of rotor(mm)	184	290	360
Rotor speed(r/min)	50
Production capacity(kg/h)	20-25	40-50	300-700
Rated motor(kw)	0.37	0.37	2.2
Overall size(mm)	530*400*530	700*400*780	910*700*1200
Net weight(kg)	70	100	280

---
