Fullwell AGC Mini Pon CATV & Sat-If Satellite Optical Node Micro Wdm FTTH Node

Product Description

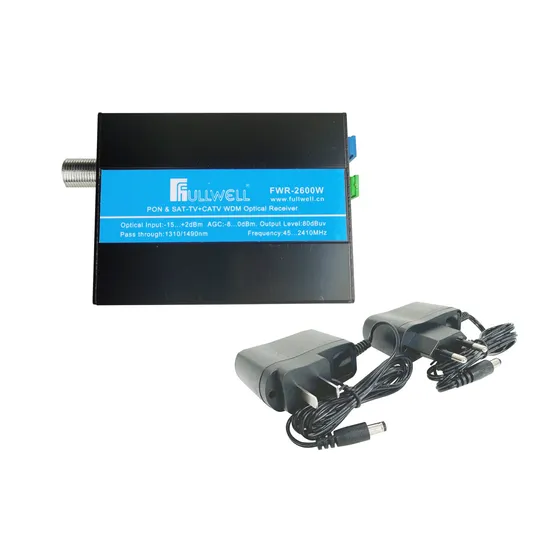

FWR-2600W, CATV+Satellite TV Optical Receiver With WDM 1.Product Description FWR-2600W optical receiver is an FTTH CATV + SAT IF high-performance optical transmission equipment, suitable for CATV and satellite live TV transmission on the same network. Use high-bandwidth, high-sensitivity photocells, low-noise matching circuits and GaAs amplification, the device has receiving range -15 ~ + 2dBm, and AGC stable output: -12 ~ -2dBm. In order to facilitate the use of the user, the device is also equipped with a working power and light power receiving monitoring LED indicator on the panel.
FWR-2600W WDM optical receiver, with PON interface, can be compatible with any FTTx PON technology, which achieves multi-network integration of CATV + satellite TV (DVB-S) + Internet. It can be used along with Fullwell WDM EDFA for large-area FTTH triple play transmission and coverage.
2.Product Feature PIN receiving optical power, -1dBm receiving sensitivity, AGC receiving range: -2 ~ -12dBm, stable output level: 82dBuv. Wide bandwidth: 47 ~ 2600MHz working bandwidth. One fiber can receive 10CH of Analog TV, Digital TV (DVB-C), Satellite TV (DVB-S) signal and CATV radio frequency RF signal at the same time. It can be used along with WDM EDFA for long-haul and large-area transmission of FTTH triple play integration. Industry-leading 5V power adapter, non-stop work design for more than 5 years. Can be integrated and compatible with any FTTx PON triple play.
FAQ
1. What are your terms of payment?
Usually, we can accept T/T, PayPal and Western Union. You can select the terms of payment which is more convenient for you.
2. What about the lead time?
Usually, if there is stock of goods, we will deliver the goods within 3~5 work days after we receive the payment.
3. How about the shipping?
Usually, we will deliver the goods via International Express like FedEx, DHL, TNT, and UPS and so on. Door to door delivery service will be provided.
4. How can I place an order?
(1) Agreement is achieved on the product price and product specifications.
(2) We make proforma invoice for your confirmation.
(3) When you agree on the proforma invoice, you make the payment.
(4) We deliver the goods after we receive your payment.
5. Can you do OEM for us?
Yes. If there is a certain order quantity, we can do OEM including printing, logo, and customized model for you.
6. What are the advantages of your products?
A. Good quality and competitive prices.
B. Strict quality control during production process.
C. Professional operations in processes of production, sales, assembling, packaging and shipping.
D. Good after-sale service. Professional online technical support can be provided. Moreover, if there is any problem of the goods, we will help to solve the problem or provide replacement of the goods.

---
