Factory Made Ring Die Pellet Mill Die for Feed Mill Industry

Product Description

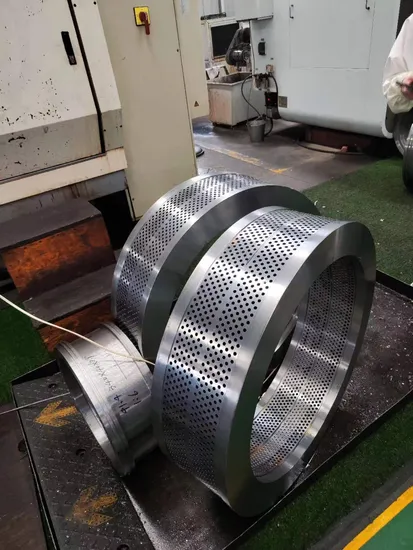

Pellet Mill Die
Our factory utilizes modern state-of-the-art equipment, including the latest automated gun and automatic drills. Precision manufacturing ensures that the ring dies we manufacture are of the highest quality.
Our ring dies are manufactured from the highest quality refined steel forgings. Normally in the following specifications: 4Cr13, X46Cr13, & 60Si2Mn (tempered to 53-55 HRC), we can also produce pellet dies to our customer's material specifications.
Using quality steel (with high carbon and chromium content) and high hardness after heat treatment, ensures our dies are durable and have a long working life.
Professional design and marketing experience to ensure the ring dies shape and the depth and number of mold holes can meet the different needs of various animal feed and pet food, thereby improving the production efficiency of the pellet.
Parameter Description

MODEL	INSIDE DIAMETER	OUTSIDE DIAMETER	WIDTH	WORKING BAND
DFGB	900	1030	296	226
DFPB	420	489	182	138
DMFC	303	381	95	62
DPAA	660	790	236	178
CPM3020	508	556	238	156
CPM6122	508	660	238	156
CPM7726	673	890	325	180
CPM7730	762	965	368	210
MUZL350	350	423	138	100
MUZL420	420	570	144	136
Remarks: Various brands and models can be customized

Company profile:
Zhenjiang AGS Machinery Co., Ltd manufacture and export conveyor parts in China. Our Business:screw conveyor, chain conveyor, belt conveyor, bucket elevator, Roller mill, Purifier Bin Filter, spout pipe, sieve cleaner, chain ,all kind of machines and components for flour mill ,feed mill, rice mill , and other bulk material handling industry. Exported country:South Asia, South Africa, West Africa, South American and Russia and the Philippines. QC standard:All the products are tested before delivery according to relevant International Standard or customers' requirements. OEM service: Besides the international standard products, we can also design and manufacture new products according to drawings or requirements. Our purpose:With more than 20 years experience in the bulk material handling industry, we hope to become one-stop suppliers for all the different machines and components.

---
