Xc Series Electrical Connector Circular Soldering Metal Industrial Connector Aviation Plug Socket

Product Description

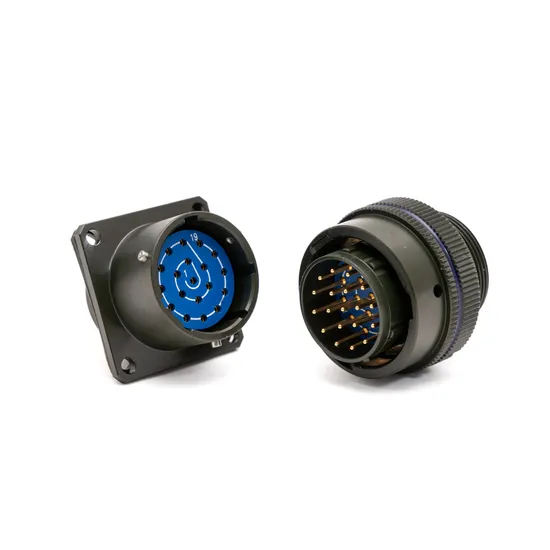

Product Description XC XCD XCE XCF XCG series circular electric connector adopts bayonet type fast connection, has the advantages of fast connection, reliable contact, small size, high density, good environmental resistance and so on. The end connection methods are crimping, welding, printed board welding, using hyperboloid wire spring jack, a variety of plug and socket structure and coating, five-key positioning with blind insertion and anti-misinsertion function, with straight shielding nuts, straight and bent cable clamp and other accessories. It also has good anti-dampness, anti-mold, anti-rain and anti-dust performance. Its specifications meet the national military standard GJB2889, the implementation of enterprise standards Q/321283HH02-2018. They are widely used in aviation, aerospace, ships and other military fields. XC SERIES XCD SERIES XCE SERIES XCF SERIES XCG SERIES Mechanical properties
(1)Common type and through-wall sealing adapter:
-Shell:High strength aluminum alloy or stainless steel
-Shell coating::
Shielding coating: Galvanized military green, electroless nickel plating, stainless steel passivation, etc
Unshielded coating: anodized in black
- Insulator: thermosetting material
- Sealing body and sealing ring: silicone rubber material
- Contact: gold-plated copper alloy
(2)Glass sintered square plate seal socket
-shell:stainless steel
- Shell coating: nickel plating
- Insulator: vitreous body
- Contact: gold plated Corval alloy

(1) AND (2)
- Vibration: frequency: 10~2000Hz, acceleration: 196m/S2
- Impact: Acceleration 980m/S2
- Constant acceleration: 980m/S2
- Mechanical life: 1000 times
Environmental performance
- Operating temperature: -55ºC~+200ºC
- Relative humidity: 95% at 40ºC
- Salt spray resistance: electroless nickel plating and galvanizing 96h, stainless steel passivation 1000h
- Working height :30000m
- Air tightness:
Through-wall sealing adapter: pressure difference 50.7KPa, leakage rate ≤46Pacm3/S
Glass sintering airtight type: pressure difference 152KPa, leakage rate ≤0.1Pacm3/S
Behaviour of electricity
-Rated voltage and withstand voltage

work environment	Hermetically sealed electrical connector		Common type electrical connector
	nominal voltage(V)	withstand voltage(V)	nominal voltage(V)	withstand voltage(V)
normal temperature status	500	1500	500	1500
Damp-heat condition	500	750	500	1125
Low pressure condition(1KPa)	150	300	250	300

-insulation resistance(MΩ)

grade	standard conditions	high temperature	damp and hot
insulation resistance	≥5000	≥1000	≥100

-Electrical continuity between enclosures:
aluminium alloy housing≤2.5mΩ
Steel shell≤5mΩ
Prevent misplug
In general, the plug and socket shell is divided into (N/W/X/Y/Z) 5 different keyways with different keyways, which can be assembled by the manufacturer according to the key number according to the needs of the user to ensure the plug and socket of the same key. So that the plugs and sockets corresponding to the same assembly keys of the same variety can be inserted, and the plugs and sockets of different assembly keys can not be inserted. Main Products
