US$12,500.00-63,000.00
|
1 Set
(MOQ)
|
Basic Info.
Model NO.
Pipe extrusion line 002
Computerized
Computerized
Certification
CE, ISO9001:2008
After-sales Service
Engineer on-Site Debugging Available
Product

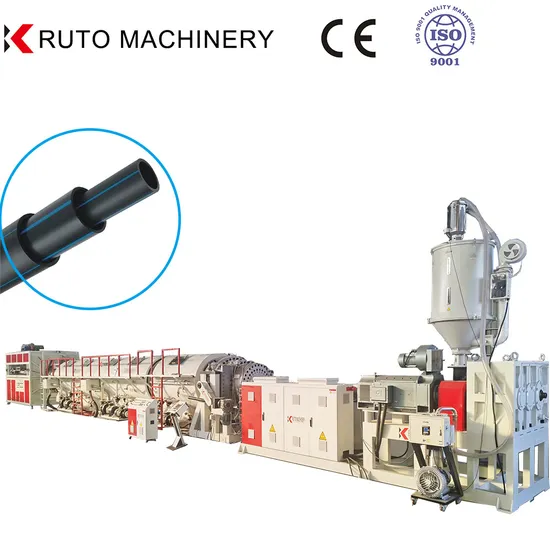

PE Pipe Extrusion Line
Application
Produce New Plastic Pipes
Extruder Control
by Siemens PLC Screen Touch
Screw Channel Structure
Deep Screw
Electrical Components
Siemens, ABB, Omron, FUJI, etc.
Production Speed
High Speed
Machine Installation
Available
Advantage 2
High Efficiency
Advantage 3
High Capacity
Pipe Usage
Water, Engergy, Gas, Irrigation, etc.
Delivery Time
About 30 Working Days
Transport Package
Standard Packing
Production Capacity
30 Sets/Per Month
Product Description
Model
Model
| Pipe dia.
Range (mm)
| Main Extruder
Model
| Mark-line
Extruder Model
| Extrusion
Speed (m/min)
| Max.Output (kg/h)
| Total installed
Power( Kw)
| Overalldimension
LXWXH
|
| KPEG-50×33-63 | Ø20- Ø 63 | KSJ-50X33 | KSJ-25X25 | 0.2-16 | 120 | 65 | 36x2.2x2.5 |
| KPEG-65×33-110 | Ø 20- Ø 110 | KSJ-65X33 | KSJ-25X25 | 0.2-20 | 220 | 115 | 56x2.2x2.5 |
| KPEG-75×33-160 | Ø 63- Ø 160 | KSJ-75X33 | KSJ-25X25 | 0.-6 | 300 | 160 | 50x2.2x2.8 |
| KPEG-80×33-250 | Ø 75- Ø 250 | KSJ-80X33 | KSJ-25X25 | 0.2-5 | 400 | 200 | 52x2.2x3.0 |
| KPEG-90×33-400 | Ø160- Ø 400 | KSJ-90X33 | KSJ-30X25 | 0.2-2 | 550 | 250 | 66x2.2x3.0 |
| KPEG-100×33-500 | Ø 200- Ø 500 | KSJ-100X33 | KSJ-30X25 | 0.1-1 | 700 | 300 | 70x2.3x3.5 |
| KPEG-120×33-630 | Ø 355- Ø 630 | KSJ-120X33 | KSJ-30X25 | 0.1-1 | 900 | 420 | 72x2.3x3.5 |
| KPEG-135×33-800 | Ø 400- Ø 800 | KSJ-135X33 | KSJ-40X30 | 0.08-0.8 | 1200 | 500 | 76x2.5x4.0 |
| KPEG-150×33-1200 | Ø 800- Ø 1200 | KSJ-150X33 | KSJ-40X30 | 0.05-0.5 | 1500 | 650 | 80x3.0x4.0 |
FAQ
Q: Are you a manufactuer or trading company?
A: We're professional manufacturer.
Q: Where is your company?
A: Our company is located in Qingdao City and it's only half an hour's drive from the airport.
Q: What's your payment term?
A: L/C, TT is all good to do.
Q: When can I get the price?
A: Once we get the specific inquiry, we can send you the price with the configuration within 3 days.
Q: If we have some other product requirements that your page don't include, can you help to supply?
A: Yes, we can customize products and services to meet your specific needs.
Q: How long is the warranty period?
A: 12 months.
>>
