| US$4,000.00-8,000.00 | 1 Piece (MOQ) |
| Configuration | Probes | 5 Steps Multi-frequency |
| Standard: | 3.5Mhz abdominal probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
| 7.5Mhz linear probe | 6.0, 6.5, 7.5, 10.0, 12.0Mhz | |
| Options: | 6.5Mhz transvaginal probe | 5.0, 6.0, 6.5, 7.5, 9.0Mhz |
| 3.5MHz micro-convex probe | 2.0, 2.5, 3.5, 4.5, 5.0Mhz | |
| 3.0Mhz phased array probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz | |
| 4D volume probe | 2.0, 3.0, 3.5, 4.0, 5.5Mhz |
| Displaying mode | B,B/B,4B,B/M,M,PW,B/C,B/C/D,B/D, duplex, triplex, CFM,4D |
| Signal processing: | Full-digital beam forming, dynamic filter, dynamic real time receiving focusing, RDA, DRA, spectral processing, CFM processing, real-time dynamic focusing, dynamic aperture in all fields |
| Image processing: | THI PSHI TM broadband multi-frequency harmonic image Speckle-reduction Power adjustable Smoothing function iBeam TM intelligent space image technology iZoom TM undistorted full screen image Free Xros M Engineer control technology with low power consumption Edge enhancement Image optimizing disposal One-key optimization Image conversion Up/down conversion Left/right conversion Intelligent built-in workstation system(Chinese/English) Doppler Sound output volume adjustable Wall filter adjustable Base line adjustable Sampling frame adjustable Spectrum sampling volume adjustable Spectrum sampling volume angle adjustable PRF adjustable |
| General measurement | B mode-distance, circumference, area, volume, angle, area Red, Diam Red M mode- distance, time, velocity, heart rate |
| Abdomen measurement | Liver, GB, Aorta, GBWT, CBD, Portal Vein, Spleen |
| OB packages | EDD table :GS ,BPD, CRL,FL,YS,TAD,LV,OFD,NT,AC,HC, APAD, Cxlength. |
| Gynecological packages | Uterine measurement (Uterine diameter, uterine endometrial); left/right ovary measurement; left/right sacculus measurement; Cervix; Uterine depth |
| Urology packages | Left/right kidney measurement, Volume, Cortex |
| Small parts Measurement | Left/ right thyroid, volume, Isthnus and calculating report |
| Cardiac Measurement Package | Heart rate, Valve speed, LV, aortic, mitral, ventricular |
| Skeletal & Muscles | Skeletal & Muscles, distance, area, Hip angle |
| Vascular | Senosis D, senosis A, Lt/Rt VVA, Lt/Rt Rulb, Lt/Rt ICA |
| Body mark | Abdominal , Gynecology, Obstetrics, Small parts |
| Scanning depth | Up to 300mm |
| Cine loop | Automatically & manually, speed control |
| Image storage format | BMP,JPEG,PNG |
| Image storage size | 500G |
| Input/output ports | VGA, USB port, DICOM port(network port) |

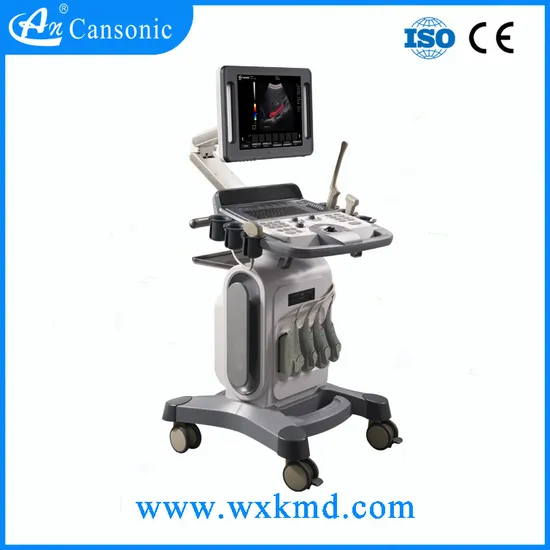

| Standard Configuration | Main unit, 15 inch LED monitor, 3.5Mhz convex probe, 7.5Mhz linear probe, free arm, 4 probe connectors, user's manual, 500G hard disk, DVD-RW |
| Option | 6.5Mhz transvaginal probe, 19 inch LED monitor , video printer, laser printer, DICOM 3.0, biopsy kit |
