2022 New Type Hose Crimping Machine 2inch 6 Spirals Ruber Hose Crimper

Product Description

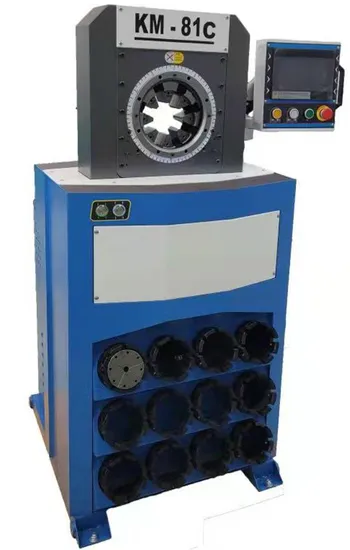

Product Overview This volume crimping machine KM-81C is ideal for crimping hydraulic hose up to 2" 6 spirals,Its particularly narrow crimping head is easy for for hose ends with large flanges or 90° couplings.
FEATURES AT A GLANCE
Technical Data Of Superthin Hydraulic Hose Crimping Machine KM-81C

Model	KM-81C
Crimping Range	1/4" - 2" 6SP
Standard voltage&motor	380V/4kW (other voltage is available)
Crimping Force	420 T
Opening without dies	φ155mm
Opening	+ 60mm
Open Time	≤ 3S
Close Time	≤9S
Hydraulic Oil	Winter: YB-N32; Summer: YB-N46
No.of standard die sets	12 sets
Systematic Pressure	30Mpa
Weight	570g
Quick change tool	has
Die shelf	available

Advantages Of KM-81C Superthin Hydraulic Hose Crimping Machine
1). Ultra thin body with large opening makes it easy for elbow to go through;
2). Operating system upgrade easy and intelligence;
3). It is suitable for non-standard fitting;
4). With quick change tool.
5). Added die base resin gasket to protect the machine from debris dropping.
6). It is a good choice for large production with high efficiency.
Applications Of KM-81C Superthin Hydraulic Hose Crimping Machine
1).SAE 100 R 15 2" 6-LAYER steel wire hose.
2).EN856 2" 6SP hose.
3).EN856 2" 6SH hose.
4).Big flange and special elbow fittings and tube
Hydraulic Hose Crimping Machine why not choose Kangmai?
1). Kangmai hose crimper has approved CE & ISO and audited by SGS.
2). The fitting and hoses crimped by kangmai machine never leakage or broken. The reason are as belows:
(a)The machine head process by CNC machine, roundness and taper is within 0.1mm.
(b)The machine die base and dies adopt special die steel and process by advances craft,the hardness is above 55HRC. The die hardness is enough so that the die life is very long and easy to crimp high pressure hydraulic hose, such as 4SP even 6SP.
(c)The technical of machine head is forging not cast. Casting is cheap but has small hole on the machine head. The piston will divide from casting machine head.

---
