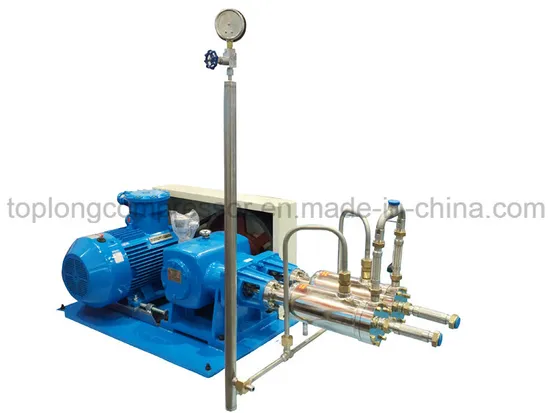

Cryogenic Liquid Cylinder Filling Pump (Svmb300-600/165)

Product Description

high pressure cyrogetic liquid Cylinder Filling Pump
Liquids Pumped
LO2, LN2, LAR, LNG
Technical Parameters
Optional Configuration
Frequency converter
Overpressure interlocking device
Safe valve/Cryogenic check valve
Temperature interlocking device of outlet
Temperature interlocking device inside pump
Featuring
Classic design, stable performance, service life of product can last as long 20 years
Vacuum jacketed pump head with 10-5 torr vacuum degree and low cold loss
Reliable sealing effect, filling service life is as many as 1500, 000 cylinder times.
Service life of piston ring is as many as 300, 000 cylinder times.
Convenient reparation, regularly Only 2 hours will be enough
Can be kept functioning continuously for 24 hours

Model	Type	Flow Range L/h	Inlet Pressure Mpa	Max Pressure Mpa
SVOC30-80/165 SVNB50-150/165 SVNB100-450/165 SVMB300-600/165 SVMA400-800/165	Single Horizontal Piston	30-80 50-150 100-450 300-600 400-800	0.02-1.6	16.5
DVNA400-1000/165 DVMB600-1200/165 DVMA800-1600/165	Double\ Horizontal Piston	400-1000 600-1200 800-1600	0.02-1.6	16.5
SVNB100-200/200 SVNB200-450/200 SVMB300-600/200	Single\ Horizontal Piston	100-200 200-450 300-600	0.02-1.6	20.0

---
