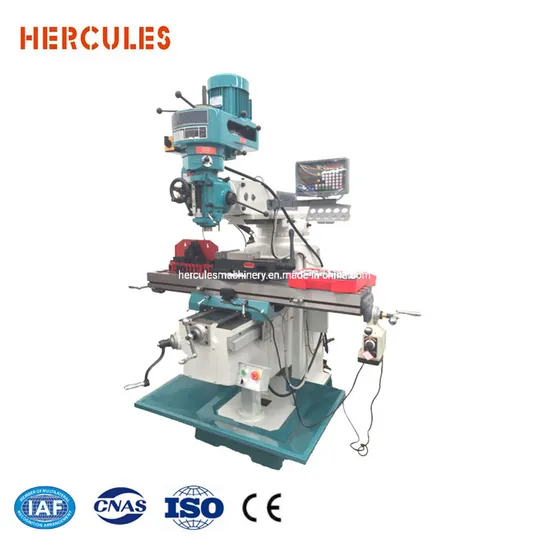

M5SV Fresadora Taiwan Spindle Vertical Turret Milling Cutting Lathe Grinding machine made in China

Product Description

Advantage!!
1. High-frequency heat treatment for working table: hardness is over HRC48 and the harden thickness is up to 3mm.
2. All slide with high quality imported Turcite B, and well hand scraping with perfect match and oil containing , and the well lubrication ensure the long lasted for the machine and accuracy resistance.

3. HT250 grain casting with Meehanited standard processing .And materials strictly added with Nickel, brass, Chrome and Rare-earth , and the physical performance and rigidity of casting is well improved.
4. For the important parts like working table and saddle, we tempered twice during the machining.

5. Key parts(for high speed driving) for the head are imported from Taiwan , and the accuracy , rigidity and DB voice of the head with well performance .

Model	Unit	M5SV
Precision High Accuracy Series
Table size(L*W)	mm	1370x305
Max.load of table	Kg	300
X axis	mm	1000 910 with power feed
Y axis	mm	380
Z axis	mm	360
Work table T slot (No.-size*pitch)	mm	3-15.88x65
Distance between spindle and table	mm	50-410
Ram travel	mm	520
Travel of spindle quill	mm	127
Auto crossward feed	mm/rev	0.04/0.08/0.15
Spindle speed	rpm(60Hz)	80-5440 rpm 16 steps
Spindle hole taper		NT40
Main Motor		5HP
Tilt angle for milling head		left and right±45º
Guiding tracks(X.Y.Z)		X dovetail, Y/Z square
Dimension(L*W*H)(mm)	mm	1850x1650x2300
Milling head		Round step pulley milling head
Weight (kg)	Kg	1375
Hercules Machinery Equipment Ltd.

Optional Accessories:
Optional milling head:
1. Square head with side brake milling head;
2. Variable speed milling head
3. Frequency conversion head

---
