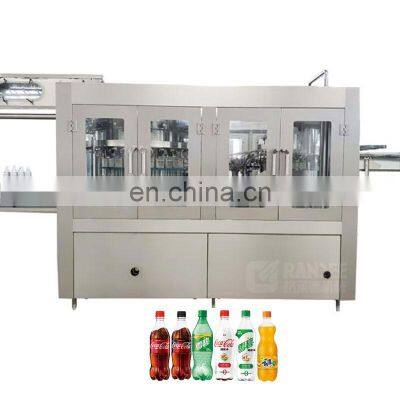

Automatic soda water washing filling capping machine for best priceProduct DescriptionMachine description and features:This series equipment is used for production of PET bottle carbonated drink. This machine intergrated washing, filling, capping in one machine with complete automation, and suitable for all kinds of bottle shapes. Il adopts clip bottle neck technology, and is more faster for adjusting the height of conveyor chain. The filling method adopts new model constant pressure filling technology, which makes filling speed is more faster and stable. The main machine adopts advanced PLC control. The key electrical elements are from famous international brand. The whole machine has scientific and reasonable design, high production capacity, low failure. Machine show:DetailsWashing Part:The grippers take the bottles from the inlet star-wheel while they are still driven by the star-wheel, thus guaranteeing a safe grip. After the gripping, the bottle is turned upside down with 180 degree and cantred above a spraying nozzle which directs a stream of rinse water into the bottle. After the draining period the bottle is turned over to an upright position againFilling part:Long tube filling type with 2 times filling process to make sure perfect filling level Liquid tank, filling valves, controlling rings, upgrading cylinder.High speed and mass flow filling valve ensures the high filling speed and exact fluid level. Parts contacting liquid are all made of excellent stainless steel or food grade engineering plastic. Capping Part: Rotative capping turret, suitable to the application of screw plastic caps on PET bottles The fixed part consists of the cap hopper, the cap feeder with relevant motor and the cam actuating the capping heads. The heads are raised and lowered by the action of a follower that is riding on a shaped cam.Air conveyor Air Conveyor is mainly used in the automatic filling production line of PET bottle beverage or water. It is the intermediate transportation of connecting blowing machine, unstacking machine, bottle storage conveying table and filling machine.Conveyor system Conveying path support on the ground by tripod, driving motor adopt frequency control, it connects with washing filling and capping 3 in 1 machine and keeps pace with it. The filled bottles are conveyed by the conveyor system. Driving system is running by a main motor that adopts gear drive mode. Main technical parameter:ModelDCGF8-8-3DCGF14-12-5DCGF18-18-6DCGF24-24-8DCGF32-32-10DCGF40-40-12Rinsing heads814182432 40 Filling heads812182432 40 Capping heads356810 12 Suitable bottle sizeH:170-320mm Dia:50-100mmCleaning pressure(MPa)0.25-0.3Capacity(b/h)15002000500070009000 12000 Dimension(mm)2000*1800*23002100*1800*25002600*2100*25003200*2300*25004200*2600*2500 4800*2800*2500 Power(kw) 1.52.23.53.85.5 7.5 Related productCarbonation drink mixerProcess: Water, syrup, CO2 mixing systemCarbonation mixer: 1500L/Hr, 2000L/Hr,3000L/Hr,5000L/Hr,etc. Co2 content is from 2.0-3.8Water chiller: working with carbonation mixer, the cooling medium of water chiller going to heat plate exchanger of carbonation mixer to cooling carbonation drink to 3 degree to 8 degree Soda water mixing systemProcess: Sugar melting boiler or High level cutting tank, double filters, syrup pump, blending tank, stroage tank Syrup melting boiler: 300L/Hr, 500L/Hr, 1000L/Hr,etc,Blending tank: 1000L/Hr, 2000L/Hr, 3000L/Hr, etc, Storage tank: 1000L/Hr, 2000L/Hr, 3000L/Hr,etc. Automatic sticky / wet glue labeling machineLabeling speed: 60~100B/MinLabeling precision: +1mmBottle size Height : 40mm~~250mm Diameter:20mm~~110mm(customized)Label size:Height :10mm~~150mm Length :15~~300mm(customized)Inner diameter of scroll :Φ76mmOuter diameter of scroll:Φ300(Max) Company InformationWorkshop deatilsOur exhibitionOur ServicesFAQQ1: How to find suitable machine or complete beverage production line?A1: Looking for beverage filling machine in www.grandeemachine.en.china.cn •Enquiry: Contact us by email, phone call, fax, Instant Messenger (Trade manager, Skype, WhatsApp, Wechat) and let us know your requirements • Discussion: Specify the items and what are you exactly looking for. Q2: Are you a trading company or a manufactory?A2: We are the manufacture of water/beverage filling machine and water treatment system over 10 years.We just not only sell drinking water machines and other related equipment , Quality is our culture. We have rich experienced engineers with technicians working team , providing good and after-sales service term , professional salesman terms . Q3: Do you have technical support after we purchased your machines?A3: We will arrange our professional technical to go aboard to your factory, they will help you and teach you how to install and maintenance the machines which you purchased. Or help you to fix machine when it has problems. Q4: If you buy our machines, can you offer us wear-out spare pats?A4: We provide our high quality machine 2 years guarantee , and we will also offer you 2 years wear-out spare parts for free. Once your machines broken or doesn't work within 2 years and you can't solve it, firstly, we will try to help you to find problems from your words description by phone or other communication tolls. Secondly, if the phone solutions still not work, our engineers will go to your factory to solve it. Meanwhile, they will teach you the related experiences for fixing.
>>
