Welcome to visit

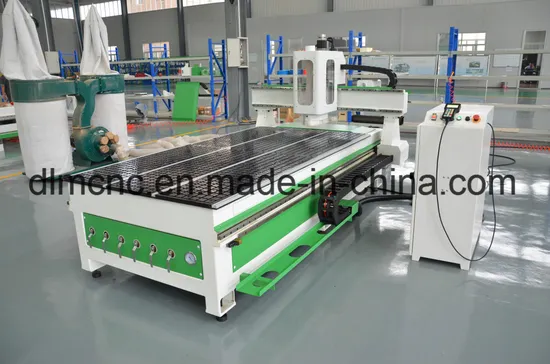

Woodworking 3D CNC Router

US$5,000.00-9,900.00 1 Piece (MOQ)

Basic Info.

Model NO.
NM-48
Application
Wood
Process Usage
CNC Non-Conventional Machine Tools
Movement Method
Contour Control
Control Method
Semi-Closed Loop Control
Numerical Control
CNC/MNC
Processing Precision
0.09~0.1(mm)
Performance Classification
Economical CNC Machine Tools
Certification
CE, ISO 9001
Condition
New
Spindle
6kw Air Cooling Spindle
Rotary Axis
Diameter 100mm, Length 1m
Table
T-Slot Vacuum Table
Controller
DSP Controller System
Software
Type 3/ Artcam
Rail
Taiwan Linear Rail
Rack
German Henrion Helical Racks
Dust Collector
3kw with Double Bags
Pump
5.5kw
Ball Screw
High Precision
Transport Package
Plywod Box
Specification
2500mm*1300mm
Trademark
DLM
Origin
China
HS Code
84609090
Production Capacity
1000 Sets/Year

Product Description

CNC woodworking machinery Tool ( model NM-48)
model NM-48
working area 1300mm*2500mm
spindle 6KW air cooling spindle
motor stepper motor
rotary axis diameter 100, length 1m
table design T-slot vacuum table
rail Taiwan linear rail
rack German Henrion helical rack
software Type 3 / ArtCAM
controller NC studio DSP / Taiwan Syntec / A11 DSP


DSP A11 Handheld controller
New three-axis linkage motion mode to achieve comprehensive controlling. Support intelligent file checking function
Vacuum Table T-Slots
The vacuum table has T-slot mounting devices incorporated into the tables to enable fixtures and material blanks to be clamped directly to the table. Clamps are provided.
Oil lubrication system
Note:It is recommended that one pump of the oiler once a month will be sufficient to keep your machine lubricated. When the oil tank needs filling,top up with a good quality SAE 30 weight oil.
