Product Details
Product Description
Product Description
X/Y/Z Travel: 1200*820*350mm
Worktable Dimensions: 1220*820mm
Worktable Load Capacity: 800Kg
Spindle Face to Worktable Height: 85--445mm
Positioning Accuracy: +-0.005/300mm
Repeatability: +-0.003/300mm
Tool Magazine Capacity: 24.0
Spindle Speed: 24000--40000rpm
Moving Speed: 24m--36m/min
Cutting Speed: 10m--20m/min
Tool Change Time: 2 seconds
Machine Tool Dimensions: 3000*2300*2600mm
Machine Tool Weight: 5500Kg
Control Method: Fully closed--loop control
Torque: Customizable configuration
Drilling Capacity: Customizable configuration
Voltage: 380V
Frequency: 50/60 Hz
Phase Type: 3--Phase Electricity
Type of Milling Machine: Gantry
Color: Black
Machining Centre: Horizontal
Automation Grade: Automatic
Job Material: Graphite
Usage/Application: Graphite Processing|Carbon Fiber Processing|Ceramic Processing|Composite Material Processing
Can it be customized: Supports customization
Guarantee: One year warranty for the whole machine
Brand: ShangshanJingji

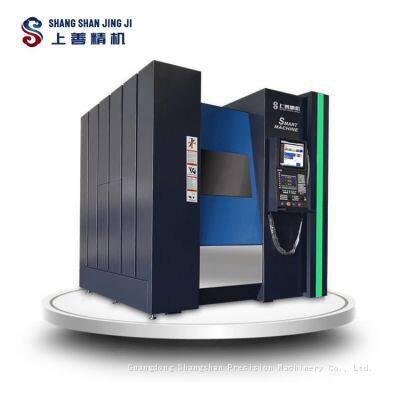

The Customized Graphite CNC Machine Tool is an advanced and versatile solution designed specifically for precision machining of graphite materials. Engineered to handle a wide range of applications, this machine is capable of efficiently processing complex shapes and parts made from isostatic isotropic graphite. This includes high-performance components such as graphite boats and custom parts for industries like aerospace, electronics, and automotive manufacturing. The integration of cutting-edge CNC technology allows for exceptional precision and repeatability, providing manufacturers with the flexibility to create tailored solutions that meet their specific needs. Whether it involves the automated turning of graphite or the machining of wear-resistant graphite boxes, this machine ensures consistent results and high-quality finishes. With its reliable and robust performance, the Customized Graphite CNC Machine Tool streamlines the production process, reducing manual labor while increasing production efficiency.
Equipped with a Five-Axis Vertical Milling Machining Center, this CNC machine offers advanced capabilities for machining intricate and detailed graphite components. It can easily handle the processing of graphite round rods and the outer circle of graphite components with unmatched precision. The system’s ability to perform multi-dimensional cuts on complex geometries makes it an invaluable tool for manufacturers producing high-precision graphite parts. Additionally, the machine is compatible with domestic graphite engraving machines, which enhances its versatility by allowing for detailed engraving work in graphite materials. By combining these features, the Customized Graphite CNC Machine Tool offers a complete, flexible solution for companies that demand efficiency, accuracy, and customization in their graphite machining operations. Whether dealing with simple or highly complex parts, this machine ensures high-quality output while minimizing waste and maximizing productivity.
>>
