Lab Semi-Automatic Thermal Plate Sealer 96 Well PCR Microplate Sealing Machine

Product Description

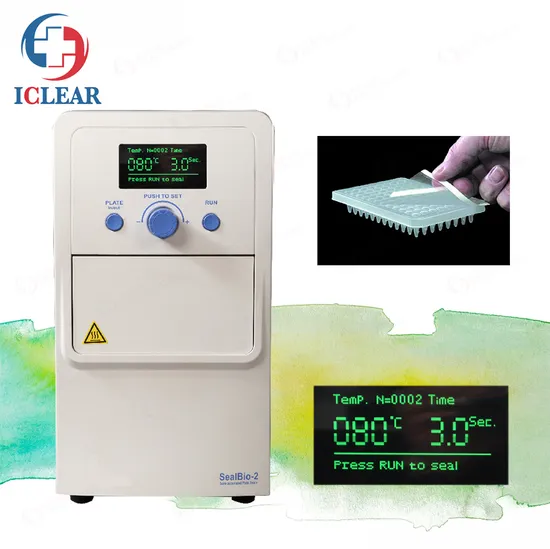

Lab Semi-Automatic Thermal Plate Sealer 96 Well PCR Microplate Sealing Machine
CHL-SealBio2
CHL-SealBio2 Plate Sealer is a semi-automatic thermal sealer that is ideal for the low to medium throughput laboratory that requires uniform and consistent sealing of micro-plates. Unlike manual plate sealers, the CHL-B2 produces repeatable plate seals. With variable temperature and time settings, sealing conditions are easily optimized to guarantee a consistent result, eliminating sample loss. The CHL-B2 can be applied in the product's quality control of many manufacturing enterprises such as plastic film, food, medical, inspection institute, scholastic scientific research, and teaching experiment. Offering complete versatility, the CHL-B2 will accept a full range of plates for PCR, assay, or storage applications.
Highlights
1. Format different microwell plates and heat seals
2. Adjustable Sealing Temperature: 80 - 200°C
3. OLED display screen, high light and no visual angle limit
4. Precise temperature, timing and pressure for consistent sealing
5. Automatic counting function
6. Plate adapters allow the use of virtually any ANSI microplate or PCR plate
7. Motorized drawer and motorized sealing platen guarantee consistent good results
8. Compact footprint: only 178mm wide x 370mm depth
9. Power requirements: AC120V or AC220VEnergy Saving Functions
1. When the CHL-B2 is left idle for more than 60min, it will automatically switch into standby mode during when the temperature of the heating element is reduced to 60°C to save energy
2. When the CHL-B2 is left idle for more than 120min, it will switch off automatically for safety. It will switch off the display and the heating element. then, the user can awaken the machine by pushing any button
Controls
Sealing time and temperature can be set by using the control knob, OLED display screen, high light and no visual angle limit.
1. Sealing time and temperature
2. Sealing pressure can be adjustable
3. Automatic counting function
Security
1. If a hand or object is stuck in the drawer when it's moving, the drawer motor will automatically reverse. This feature prevents injury to the user and the unit
2. Special and smart design on the drawer, it can be detached from the main device. So users can maintain or clean the heating element easily
Specifications

Model	CHL-SealBio2
Display	OLED
Sealing temperature	80 ~ 200ºC (increment of 1.0 ºC)
Temperature accuracy	±1.0°C
Temperature uniformity	±1.0°C
Sealing time	0.5 ~ 10 seconds (increment of 0.1s)
Seal plate heights	9 to 48mm
Input Power	300W
Dimension (D x W x H)mm	370×178×330
Weight	9.6kg
Compatible Plate Materials	PP (Polypropylene)
	PS (Polystyrene)
	PE (Polyethylene)
Compatible plate types	SBS Standard plates, Deep-well plates
	PCR plates (Skirted, semi-skirted and no-skirted formats)
Heating Sealing Films & Foils	Foil-polypropylene laminate
	Clear polyester-polypropylene laminate
	Clear polymer
	Thin clear polymer
