US$1,600.00-14,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Main Material
Stainless Steel
Mixing Drum Shape
Circular Groove
Gasket
EPDM (FDA 177.2600)
Surface Finish
Ra0.8/0.6/0.4 Micrometer
Connection
Clamped, Threaded, Flanged etc.
Material
Stainless Steel 304/316L
Max. Temperature
130 Degree Centigrade
Mechanical Seal
Single or Double
Operating type
Continuous Operating
Transport Package
Plywood Case
Origin
Wenzhou, Zhejiang, China
Production Capacity
200sets/Month
Product Description

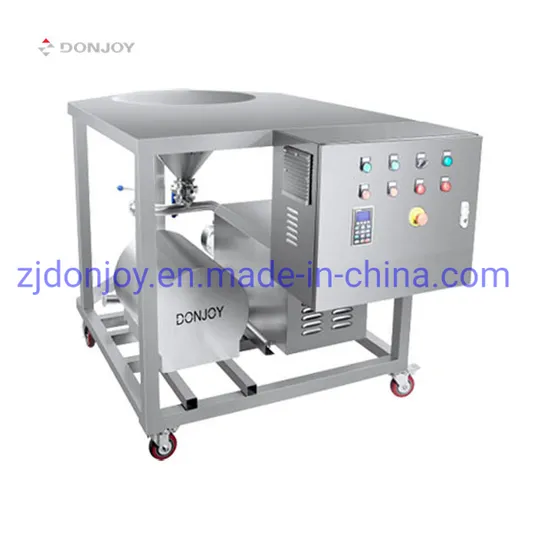

Mixed Powder Homomixer Homogeneous Softening Stainless Steel Pump With Control Box
PMZX series mixing pump is used for mixing material and liquid with multi-function such as:
mixing, shearing, emulsifying, homogenizing, dispersing, refining, crushing and material improvement.
Compared with traditional production process, such pump is more simple, convenient and economic,
which improves production efficiency and the quality of treated media.
Mainly used in the industries of: food, beverage, dairy products, additives, personal care, biopharma, thickeners etc.
SPECIFICATION
| Item: | Homogeneous Mixer |
| Material: | SS304/SS316L/1.4301/1.4404 |
| Gasket: | EPDM (Standard, FDA approval), FPM(Viton) |
| Max. Flow: | 40T/H |
| Mechanical seal: | SIC/SiC/EPDM(Standard) |
| Surface finish: | Ra ≤ 0.8 μm, Ra ≤ 0.6 μm, Ra ≤ 0.4 μm |
| Mechanical seal: | Single or double mechanical seal |
| Power: | 11KW~37KW |
| Motor: | ABB/domestic |
| Frequency: | 50HZ, 60HZ |
| Structure: | With CIP pump & Homogeneous pump |
| Connection: | Clamped, Threaded, Flanged |
| Standard: | DIN, SMS, 3A, RJT, ISO, IDF |
| Operation: | Electic (by motor) |
| Certificate: | 3-A-02-11(NO. 1579); MD/06/42-EC (NO. 70521616101-00);
FDA 177.2600; USP CLASS II; EG/VO1935/2004; |
| Application scope: | Dairy, food, beverage, pharmacy, cosmetic etc |
>>
