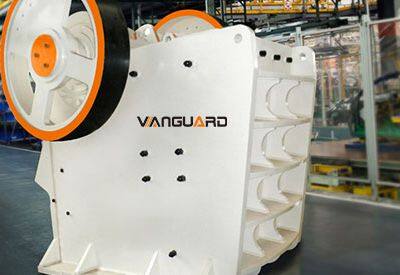

The PEW series hydraulic jaw crusher is a new equipment for crushing hard or abrasive stones. The PEW series hydraulic jaw crushers are sold well in the market because of the disassembly frame without welding structure, double wedge adjusting device, elastic limit damping device and integrated motor base.This jaw crusher could be widely used in mining, building material, highway, railway water conservancy and chemical industries.
PRODUCT PARAMETERS
Model
| PEW860
| PEW1100
| PEW200×1300
| PEW250×1000
| PEW250×1200
| PEW400×600
|
Feeding Opening(mm)
| 860×1100
| 1100×1200
| 200×1300
| 250×1000
| 250×1200
| 400×600
|
Feeding Size(mm)
| ≤720
| ≤930
| ≤180
| ≤220
| ≤220
| ≤350
|
Range of Discharge Opening (mm)
| 100-225
| 150-275
| 10-30
| 20-40
| 20-40
| 35-85
|
Eccentric Shaft Rotation Speed(rpm)
| 240
| 210
| 320
| 330
| 330
| 250
|
Capacity(t/h)
| 200-500
| 300-650
| 12-35
| 15-50
| 20-50
| 15-70
|
Electric Motor
| Power
(kw)
| 132～160
| 185～200
| 30～37
| 30～37
| 37～45
| 37～45
|
Rotation Speed
(rpm)
| 985
| 740
| 980
| 980
| 980
| 980
|
Overall Dimension(L×W×H)(mm)
| 3300×2320×
3120
| 4140×2660×
3560
| 1320×2150×
1175
| 1400×1850×
1310
| 1400×2050×
1310
| 1920×1460×
1840
|
Weight(kg)
| 32000
| 59200
| 7500
| 6800
| 7800
| 8000
|
PRODUCT ADVANTAGES
●VANGUARD uses high-quality steel castings for core load bearing parts like moving jaw and bearing block of jaw crusher. ●Deep-cavity design is adopted; the rotary speed is reasonably matched with the optimized nip angle; the maximum output is guaranteed.
● The eccentric shaft is forged by alloy steel and subjected to finish turning, so that its bearing capacity is high.
● Due to the adoption of high-quality bearings and thin oil for lubrication, it has the advantages of long service life, smooth
operation and convenient maintenance.
● Operations such as steel plates' cutting bending planing milling and paint spraying are all controlled numerically. The
machining precision is high especially for the core parts.
Processed Materials:Limestone, Granite, Basalt, River Stone, Quartz, Copper Ore, Iron Ore, Marble, etc.
CUSTOMERS' SITES
Packaging and Shipping
About VANGUARD
Zhengzhou Vanguard Machinery Technology Co., Ltd. is a professional high-end equipment manufacturing enterprise integrating R&D, production and sales. Its business scope covers sand and gravel aggregates, industrial grinding powder, mobile crushing plant, EPC general contract project and other professional high-end equipment manufacturing enterprises. Our factory covers 110000 square meters and our products are sold to more than 100 countries, being the popular equipment in global crushing industry.
Matching of production and support system allows customers to get the best service at the lowest cost.
Qualification
Our products have passed ISO9001-2008 international quality management system certification and European CE certification and established a fully controlled quality management system. We are playing a leading role in quarry mining, sand making and industry powder producing fileds.
Our Services
FAQ
Q1: what will you do if the machine is broken down? Does your company supply the spare parts?
A: The Products warranty is 12 months. We will provide the technical advice and find the solution immediately for you when the machine is in trouble. And we will supply the spare parts with high quality for you at the lowest cost.
Q2: How long is your delivery time？
A: The lead time is 10-30 days. Delivery time will vary depending on the type of the machine, availability and shipping method.
Q3：What is the shape of the aggregate made by your company's crusher?
A: The shape of the aggregate is related to the design of the crusher or the complete stone production line. Our engineers will
design the most suitable proposal based on raw materials.
Q4: How about the quality of your equipment?
A: Our products are manufactured strictly according to national and international standard, and we will take a test on every set of machine before delivery.
>>
