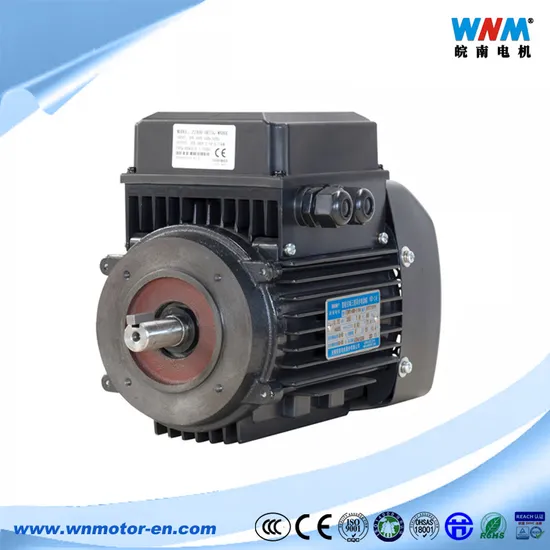

Variable Frequency Induction Motor Smart All-in-One Integrated with VFD Controller AC Motor Electric Motors

Product Description

Smart Control Induction Motor
--------------------------------------------------------------------------------------------- Applications: Widely used in fans, pumps, compressors, CNC machine tools and other industries. It's in line with the current trend of intelligent development of new products.
General Description Frame sizes: 80 to 132 Rated output: 0.18 to 7.5kW Voltage: 380V Frequency range: 25Hz or 100 Hz Number of poles: 2,4 Insulation class: F Degree of protection: IP55 Efficiency levels: IE2 High Lights:
*Highly -integrated
*Space-Saving
*Independent brand
*Stability
*Reliability
*Perfect Service
*Wide Application
*Attractive Profile
*Compact structure
*Simple operation
Features: These series motor is different from general frequency variable motor. The motor and inverter is highly integrated as an organic whole, with small size, light weight, wide range of frequency conversion, stable performance and other advantages.
The Implication of the Symbol:

Item		Description
Basic Control Function	Control	Open-loop vector control(No PG), V/F control
	Max frequency	Vector control:0~300Hz V/F control: 0~3200Hz
	Carrier Frequency		0.5kHz~16kHz Self-adjust frequency basing on the load characteristic
		Input FREQ Resolution		Digital setting:0.01Hz Analog setting:max frequency×0.025%
		Start Torque		0.5Hz/150%
		Speed Range		1:100
		Steady Speed Accuracy		±0.5%
		Overload Capacity		150% rating current 60s;180% rating current 3s.
		Torque Boost		Automatically;Manually 0.1%~30.0%
		V/F Curve		3 Modes:Linear;Multi-point;N-th power V/F curve(1.2 powers,1.4 powers,1.6 powers,1.8 powers,2 powers)
		V/F Separation		2 Modes:Total separation,Semi separation
		ACC/DCC Curve		Linear or S curve ACC/DCC PTN. 4 time modes of ACC/DCC (Timer range 0.0~6500.0s)
		DC Brake		DC braking frequency:0.00Hz~Max FREQ Braking time:0.0s~36.0s Braking current:0.0%~100.0%
		JOG Control		JOG FREQ:0.00Hz~50.00Hz. JOG ACC/DCC time range 0.0s~6500.0s.
		PLC,Multi-section speed		Max 16- section speed operation available with built-in PLC or terminal control
		Built-in PID		Process close-loop control system available
		AVR Function		Automatically regulate the voltage to constant output though the changing in the grid voltage.
		Overcurrent / overvoltage stalling		Automatically limit the current and voltage during running to avoid frequent overcurrent /overvoltage trip.
		Current limiting function		Reduce overcurrent malfunction, ensure motor's operation
		TORQ Limitation		Automatically limit the torque during running to avoid frequent overcurrent trip.

Type	Power kW	Rating Current A	Speed r/min	Eff.%	P.F	Torque N.m	Variable Torque Speed Range	Constant Output Speed Range	Noise dB(A)
Rating Synchronous Speed 3000 r/min
YZNP2-80M1-2	0.75	1.8	2855	77.4	0.82	2.51	1500~3000rpm	3000~3600rpm	70
YZNP2-80M2-2	1.1	2.5	2870	79.6	0.83	3.66			70
YZNP2-90S-2	1.5	3.3	2865	81.3	0.84	5.00			74
YZNP2-90L-2	2.2	4.7	2870	83.2	0.85	7.32			74
YZNP2-100L-2	3	6.2	2875	84.6	0.87	10.0			78
YZNP2-112M-2	4	8.0	2910	85.8	0.88	13.1			80
YZNP2-132S1-2	5.5	10.9	2935	87.0	0.88	17.9			83
YZNP2-132S2-2	7.5	14.5	2930	88.1	0.89	24.4			83
Rating Synchronous Speed 1500 r/min
YZNP2-80M1-4	0.55	1.4	1430	79.0	0.75	3.67	750~1500rpm	1500~1800rpm	60
YZNP2-80M2-4	0.75	1.9	1425	79.6	0.76	5.03			60
YZNP2-90S-4	1.1	2.7	1420	81.4	0.77	7.40			63
YZNP2--90L-4	1.5	3.5	1420	82.8	0.78	10.1			63
YZNP2-100L1-4	2.2	5.0	1430	84.3	0.80	14.7			66
YZNP2-100L2-4	3	6.6	1430	85.5	0.81	20.0			66
YZNP2-112M-4	4	8.7	1450	86.6	0.81	26.3			68
YZNP2-132S-4	5.5	11.6	1465	87.7	0.82	35.9			73
YZNP2-132M-4	7.5	15.5	1465	88.7	0.83	48.9			73

Type	Inverter	Output Power(KW)	Input Current(A)	Output Current(A)
YZNP2-80M1-2	WN60-0.75G-T-4	0.75	3.8	2.5
YZNP2-80M1-4
YZNP2-80M2-4
YZNP2-80M2-2	WN60-1.5G-T-4	1.5	5	3.7
YZNP2-90S-2
YZNP2-90S-4
YZNP2--90L-4	WN60-1.5G-T-4	1.5	5	3.7
YZNP2-90L-2	WN60-2.2G-T-4	2.2	5.8	5
YZNP2-100L1-4
YZNP2-100L-2	WN60-3.7G-T-4	3.7	10	9
YZNP2-100L2-4
YZNP2-112M-2	WN60-5.5G-T-4	5.5	15	13
YZNP2-132S1-2
YZNP2-112M-4
YZNP2-132S-4
YZNP2-132S2-2	WN60-7.5G-T-4	7.5	20	17
YZNP2-132M-4

Specifications of cooling blower and brake for the motor

Motor	Frame	80	90	100	112	132	160	180	200	225	250	280	315	355
Cooling Fan	(W) Power	30	42	52	55	55	80	80	150	200	230	320	700	700
	(A) Current	0.09	0.16	0.18	0.18	0.19	0.26	0.30	0.6	0.6	0.6	1.1	1.8	1.9
	Voltage	Standard 380V, but blower of other voltage can be customized depending on user's requirement.
Brake	(N·m) Braking Torque	7.5	15	30	40	80	150	200	300	450	600	850	200	-
	(W) Excitation Power	50	60	80	110	130	150	150	200	200	210	340	400	-
	Excitation Voltage	DC99,DC170												-
Encoder	Incremental Encoder

SITE
Show Room
Premium Service
Quality Control
Wannan Motor Production Workshop and Flow Chart
Certificates and more COMPANY information please go to "ABOUT US"
---------------------------------------------------------------------------------------------------------------------------
Welcome to contact us directly...
