US$8,000.00-25,000.00
|
1 Piece
(MOQ)
|
Basic Info.
Engraving Head Speed Adjustability
Wide Adjustable Range
Certification
CE, ISO, BV, TUV
Application
Glass, Ceramics, Decoration, Advertising, Art & Craft, Stela & Gravestone, Stone Industry
Usage
Stone Column, Railing, Balustrade, Statue
Applicable Material
Wood, Stone, Plastic, Soft Metal Engraving
Rotary Working Area
200mm Diameter*1300mm Length *4
Spindle Power
3kw Water Cooling
Spindle Rotation Speed
24000rpm
Travel Motors
Japan Servo Motors
Controlling System
4 Axis Nc Studios
Compatible Software
All Cam Software, Powermill, Ug etc
Overall Size (L*W*H)
2.91m, 2.26m, 2.21m
Water Proof Dust Cover
Yes
Transport Package
Outside: Standerd Plywood Case Package
Specification
working size: 200mm(D)*1300mm(L)*4pc
Production Capacity
1200sets/Year
Product Description

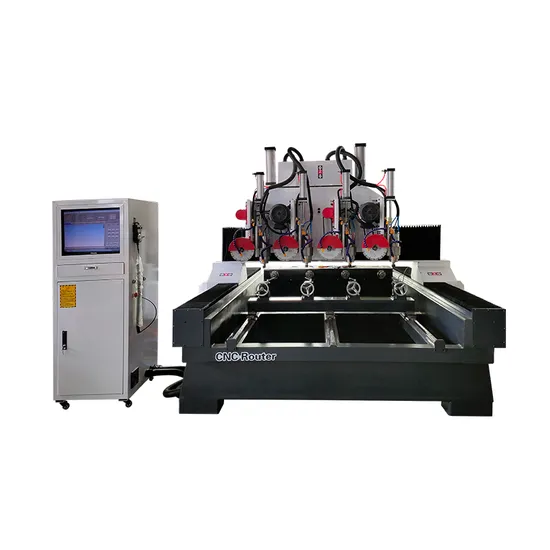

4 Head 3D CNC Stone Engraving Machine with Quick Saw Roughing and 4th Axis Rotary
Description
| Parameters
|
Model
| JCS1325R-4H
|
working area
| 200mm diameter, 1300mm length
|
| Guide Rail | Taiwan HIWIN square linear guide rail on X,Y, Z axis
|
Rack and Pinion
| Taiwan Rack and pinion transmission on X, Y axis
|
| Ball Screw | Taiwan Ball Screw on Z axis
|
Spindle power
| 3 kw water-cooling spindle
|
Spindle rotating speed
| 0-24000rpm/min
|
Motor
| Servo Motor
|
Work voltage
| AC380V/50Hz
|
Command language
| G code or HPGL
|
Operating system
| DSP control system
|
Weight
| 2500kg
|
Application:
1).Stone Material: Artificial stone, Marble, Granite, Ceramic Tile,milestone, Terrazzo, Limestone, Sandstone,
Travertine, Quartzite, Slate, grindstone,Jade etc.
2).Wood Material:Solid Wood,Particle board,MDF,Wood Panel,Glass, Furniture(Door lock holes and edges), wave board screen,Calligraphy tablet etc.
3).Acrylics material:Acrylics,Light guide plate and diffuser plate
4).Thermoplastic Elastomers:Rubber, Plastic, Resin and Foam Products
5).Engineering Plastics Material:PVC,ABS,PE,PF,PU
6).Compound material:FRP, Artificial Stone, Compact Grade Ceramic Chip and Laminates,Carbon Fiber Panel
7).Light Metal Materiall:Aluminum, Copper
>>
