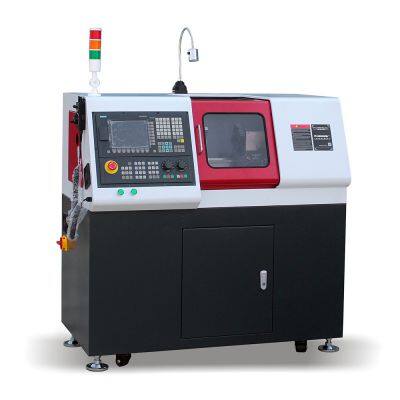

Product Details
Product Description
Product Description
Features
(1).Automatic 4 positions tool post. (2).With sink and nozzles.
(3).High performance 2 axis CNC Yornew lathe controller,
(4).Lathe CNC machine tools based entirely on the design and manufacture, reflects the structural integrity of facilitate future design ideas.
(5). The standard spec includes MPG hand wheel. (6). USB port for program input,
(7). Control speed by G code.
(8). Selection of high -quality casting materials, more compact.
(9). A collection of ball screw, bearings and couplings with high precision positioning, while adding an oil lubrication system, to protect your machine precision, extended service life.
(10). 220V/110V single-phase AC power supply. (11). Safety electrical components of high quality. (12). Auto power off when door open.
(13). Applicable industry: technology development, advertising design, art, ocational technical college Education & Training CNC and DIY enthusiasts.
Technical parameters
|
Swing over bed
| 210mm
|
Chuck diameter
| 100mm
|
Spindle speed
| 100-1750r/min ( 3000RPM optional )
|
Spindle through-hole
| 25mm
|
Spindle mount
| MT4
|
Spindle motor power
| 1100W DC brushless motor
|
X travel
| 80mm
|
Z travel
| 290mm
|
The max moving speed
| 4000mm/min
|
X/Z motor
| 400W Servo Motor
|
The max feeding speed
| 2000mm/min
|
Control system
| Yornew 980 cnc controller
|
MPG hand wheel
| 4 axis
|
Tool position
| 4
| 4+2+2 （Optional）
|
Tool dimension
| 10*10mm
|
Tailstock taper
| MT2
|
Travel of tailstock
| 50mm
|
Positioning accuracy:
| 0.03mm
|
Repeatability accuracy
| 0.02mm
|
Power
| 230V/120V
|
Weight(NW/GW)
| 280/320KG
|
Overall dimension
| 1000*580*1180mm
|
Packing size
| 1100*800*1770mm
|
>>
